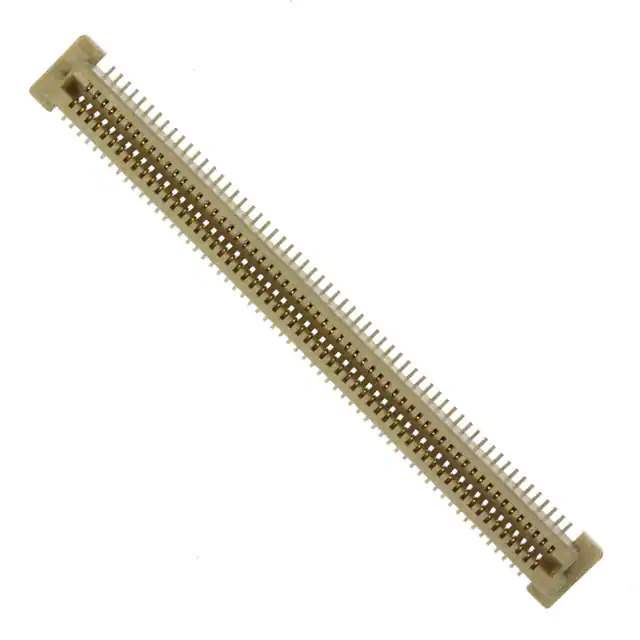

5177983-5 Real Image
Same model may have multiple batches, images only for reference.

5177983-5

Part No 5177983-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tube
Product Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm, 6mm, 7mm, 8mm
Height Above Board 0.148" (3.75mm)
Base Product Number 5177983
Standard Package 9 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845527-5177983-5
Ultra Librarian 3D Model Ultra Librarian 5177983-5 CAD Model

Description

The Free Height (FH) series edge type mezzanine connector is a high-density connector designed for board-to-board connections. It features a 120-position receptacle connector type with two rows and a pitch of 0.031" (0.80mm).

  • Positions: 120
  • Rows: two
  • Pitch: 0.031" (0.80mm)
  • Board Guide: yes
  • Contact Finish: gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Packaging: tube
  • Standard Package: 9 pieces
  • Mounting: surface mount
  • Mated Stacking Heights: 5mm, 6mm, 7mm, and 8mm
  • Height Above Board: 0.148" (3.75mm)
