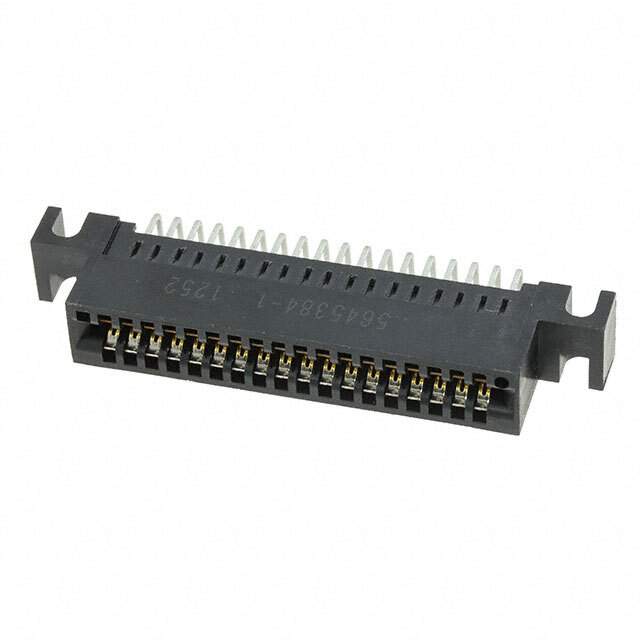

5645384-1 Real Image
Same model may have multiple batches, images only for reference.

5645384-1

Part No 5645384-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 36POS 0.100 / 36 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 36
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole, Right Angle
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Flange Feature Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5645384
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5645384-1-ND,2266-5645384-1,-5645384-1-SI,A139219
Standard Package 112
Win Source Part Number 1334050-5645384-1
Ultra Librarian 3D Model Ultra Librarian 5645384-1 CAD Model

Description

The 1334050-5645384-1 is a card edge connector from TE Connectivity AMP Connectors with 36 positions and 2 rows.

  • Positions: 36
  • Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Termination: Solder
  • Gender: Female
  • Color: Black
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester and Glass Filled
  • Features: Flush Mount, Side Opening, Unthreaded Flange
  • Flange Diameter: 0.128 inches (3.25mm)
  • Readout: Dual
  • Operating Temperature Range: -55°C to 85°C
  • MSL Level: 1
  • HTSUS: 8536.69.4040
