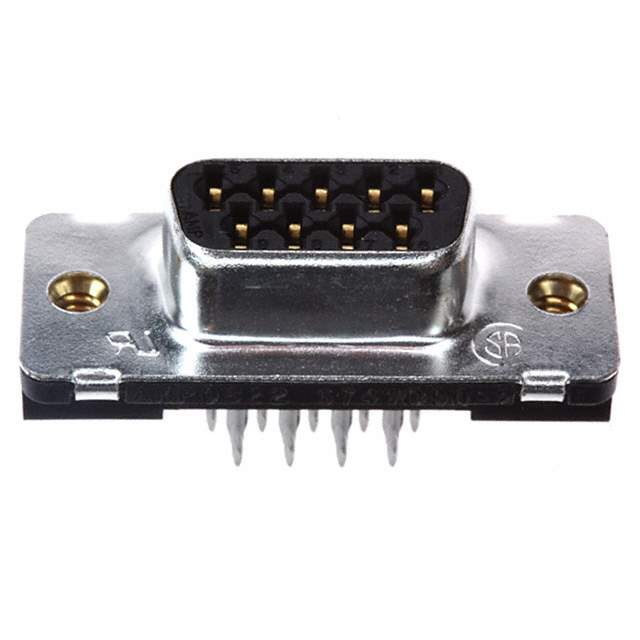

5747090-2 Real Image
Same model may have multiple batches, images only for reference.

5747090-2

Part No 5747090-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT PRESS / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Press-Fit
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747090
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1223875-SI-ND,2266-5747090-2,-1223875-SI,57470902,A32031,-5747090-2-SI
Standard Package 130
Win Source Part Number 1333173-5747090-2
Ultra Librarian 3D Model Ultra Librarian 5747090-2 CAD Model

Description

The TE Connectivity AMP Connectors 5747090-2 is a female socket D-sub connector assembly with 9 positions.

  • Color: Black
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Type: Signal
  • Connector Style: D-sub
  • Shell Material: Steel
  • Shell Finish: Tin-Plated
  • Flange Feature: Housing/Shell (4-40)
  • Temperature Range: -55°C to 105°C
  • Ingress Protection: Not Specified
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 130
  • Win Source Part Number: 1333173-5747090-2
