Same model may have multiple batches, images only for reference.

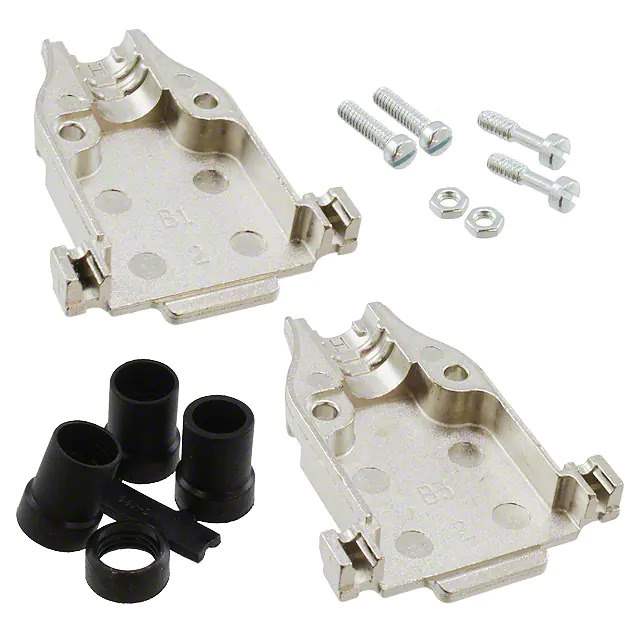

5748676-2 Real Image
Same model may have multiple batches, images only for reference.

5748676-2

Part No 5748676-2
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 15POS 180DEG SHLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr TE Connectivity
Series AMPLIMITE HD-20
Package Bulk
Product Status Obsolete
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Type Round
Cable Exit 180°
Shielding Shielded
Material Metal, Zinc Alloy
Plating Nickel over Copper
Hardware Assembly Hardware, Grommets
Features Mating Screws 4-40
Color Silver
Base Product Number 5748676
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 850047-5748676-2
Ultra Librarian 3D Model Ultra Librarian 5748676-2 CAD Model

Description

The AMPLIMITE HD-20 series two-piece backshell is a D-sub connector accessory designed for use with D-sub connectors.

  • Series: AMPLIMITE HD-20
  • Accessory Type: Backshell
  • Color: Silver
  • Shielded: Yes
  • Material: Metal (Zinc Alloy)
  • Plating: Nickel over Copper
  • Cable Exit Angle: 180 degrees
  • Cable Type: Round
  • Includes: Assembly hardware and grommets
  • Standard Package: 1 piece
  • Manufacturer: TE Connectivity
