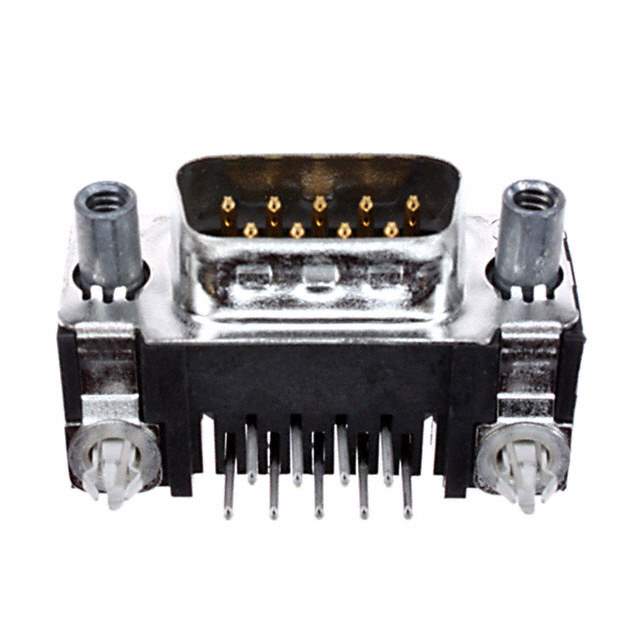

The electronic component with Id 704566 is a connector manufactured by TE Connectivity AMP Connectors.

• Series: AMPLIMITE HD-20
• Packaging: Tray
• Positions: 9
• Color: Black
• Operating Temperature Range: -55°C to 105°C
• Features: Board lock, grounding indents
• Connector Type: Plug with male pins
• Contact Type: Signal
• Rows: Two
• Termination: Solder
• Contact Finish: Gold
• Contact Material: Brass
• Connector Style: D-Sub
• Voltage Rating: 125V
• Current Rating: 6A
• Housing Material: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Mounting: Through hole, right-angled
• Flange Feature: Mating side with a female screwlock (4-40)
• Shell Material and Finish: Steel, tin plated
• Shell Size and Connector Layout: 1 (DE, E)
• Family: 5788793
• Category: Connectors and interconnects
• Backset Spacing: 0.318" (8.08mm)
• Alternative Parts (Cross-Reference): XM2C-0942-132L, XM2C-0942-112L, K22HT-E9P-N30
• Introduction Date: March 10, 2008
• ECCN: EAR99
• Country of Origin: Mexico
• EOL Date (Estimated): 2026
• Halogen-Free Compliant: No
• Supply and Demand Status: Limited
