Same model may have multiple batches, images only for reference.

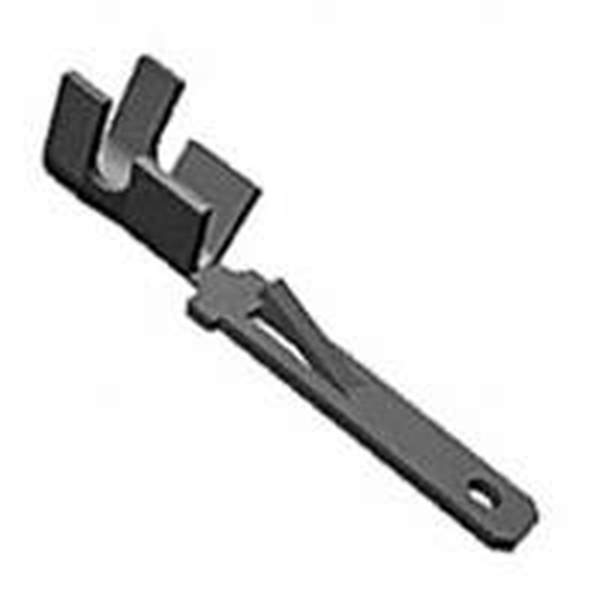

60294-1 Real Image
Same model may have multiple batches, images only for reference.

60294-1

Part No 60294-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 18-22AWG 0.250 CRIMP / 0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.620" (15.75mm)
Length - Overall 1.107" (28.12mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.085" ~ 0.125" (2.16mm ~ 3.18mm)
Base Product Number 60294
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 60294-1-ND,A104093CT,-60294-1-SI,A104093TR,602941
Standard Package 64,000
Win Source Part Number 1333836-60294-1
Ultra Librarian 3D Model Ultra Librarian 60294-1 CAD Model

Description

The TE Connectivity AMP Connectors are quick connect/disconnect terminals used in various applications such as automotive, industrial, and consumer electronics.

  • Insulation: Non-Insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.620" (15.75mm)
  • Wire Gauge: 18-22 AWG
  • Mounting Style: Free hanging (in-line)
  • Packaging: Reel - TR
  • Standard Package: 64,000
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • RoHS3 Compliant: Yes
  • REACH Status: Vendor Undefined
