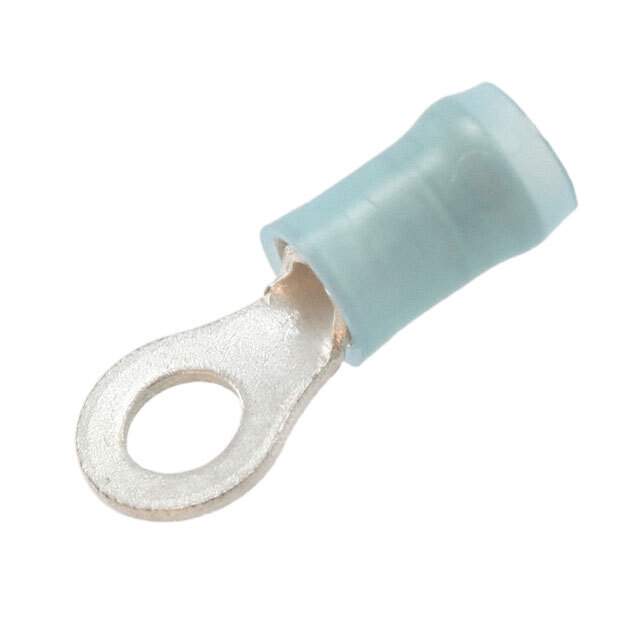

8-53941-1 Real Image
Same model may have multiple batches, images only for reference.

8-53941-1

Part No 8-53941-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-16AWG #8 CRIMP  /  Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.813" (20.65mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 53941
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 8539411,2266-8-53941-1,-8-53941-1-SI
Standard Package 100
Win Source Part Number 1073943-8-53941-1
Ultra Librarian 3D Model Ultra Librarian 8-53941-1 CAD Model

Description

The TE Connectivity AMP Connectors 53941 is a high-quality ring connector with a serrated termination.

  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Material: Copper
  • Insulation Material: Polyamide (PA), nylon, insulated
  • Thickness: 0.031" (0.79mm)
  • Width: 0.312" (7.92mm)
  • Length: 0.813" (20.65mm)
  • Insulation Diameter: 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
  • Stud/Tab Size: 8 stud
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Circular
