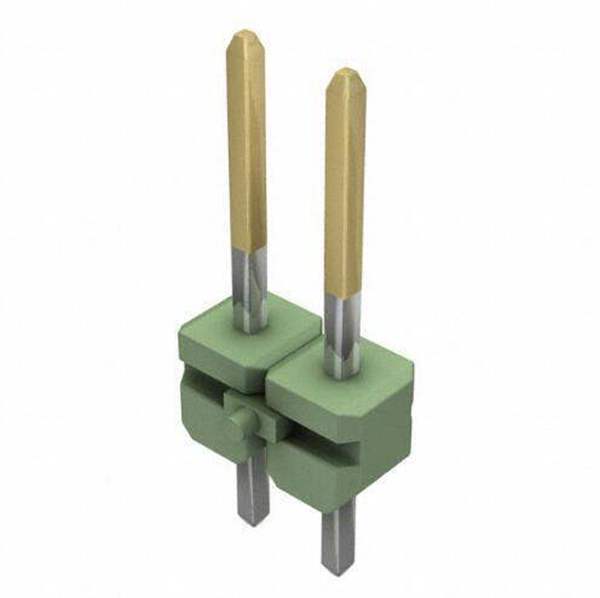

825433-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

825433-2

Part No 825433-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging Bulk
Part Status Active
Contact Type Male Pin
Contact Length - Mating 0.264" (6.70mm)
Overall Contact Length 0.500" (12.70mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Operating Temperature -65°C ~ 105°C
Win Source Part Number WS1304384-825433-2
Ultra Librarian 3D Model Ultra Librarian 825433-2 CAD Model

Description

Connector Header Through Hole 2 position 0.100" (2.54mm)
