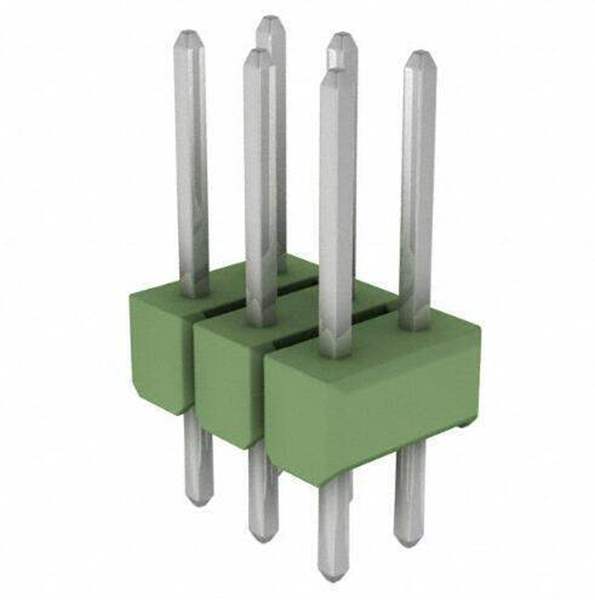

826942-3TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

826942-3

Part No 826942-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Connector Type Header, Breakaway
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.465" (11.81mm)
Insulation Height 0.110" (2.79mm)
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Material Copper Alloy
Win Source Part Number WS1304400-826942-3
Ultra Librarian 3D Model Ultra Librarian 826942-3 CAD Model

Description

Connector Header Through Hole 6 position 0.100" (2.54mm)
