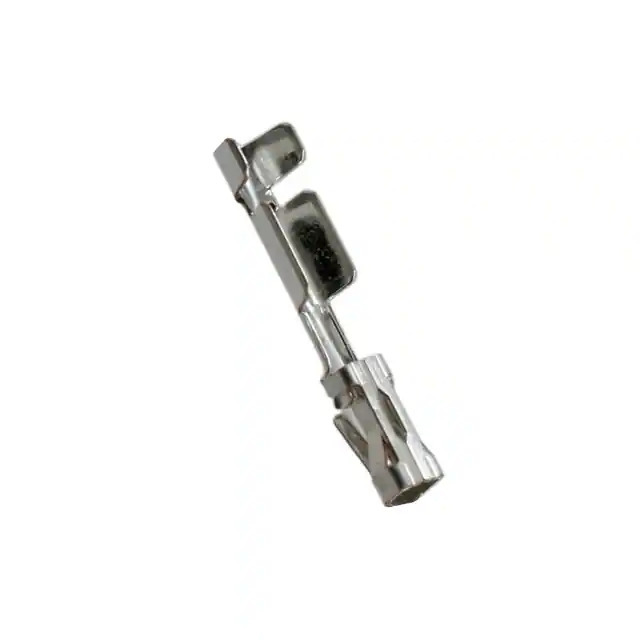

87309-8 TE Connectivity
Same model may have multiple batches, images only for reference.

87309-8

Part No 87309-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 20-24AWG CRIMP TIN / Socket Contact Tin 20-24 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod V
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Finish Tin
Contact Finish Thickness 50.0µin (1.27µm)
Base Product Number 87309
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362845-87309-8
Ultra Librarian 3D Model Ultra Librarian 87309-8 CAD Model

Description

The 1362845-87309-8 is a rectangular connector contact from TE Connectivity AMP Connectors.

  • Termination: Crimp
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 50.0 microns
  • Base Product Number: 87309
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
