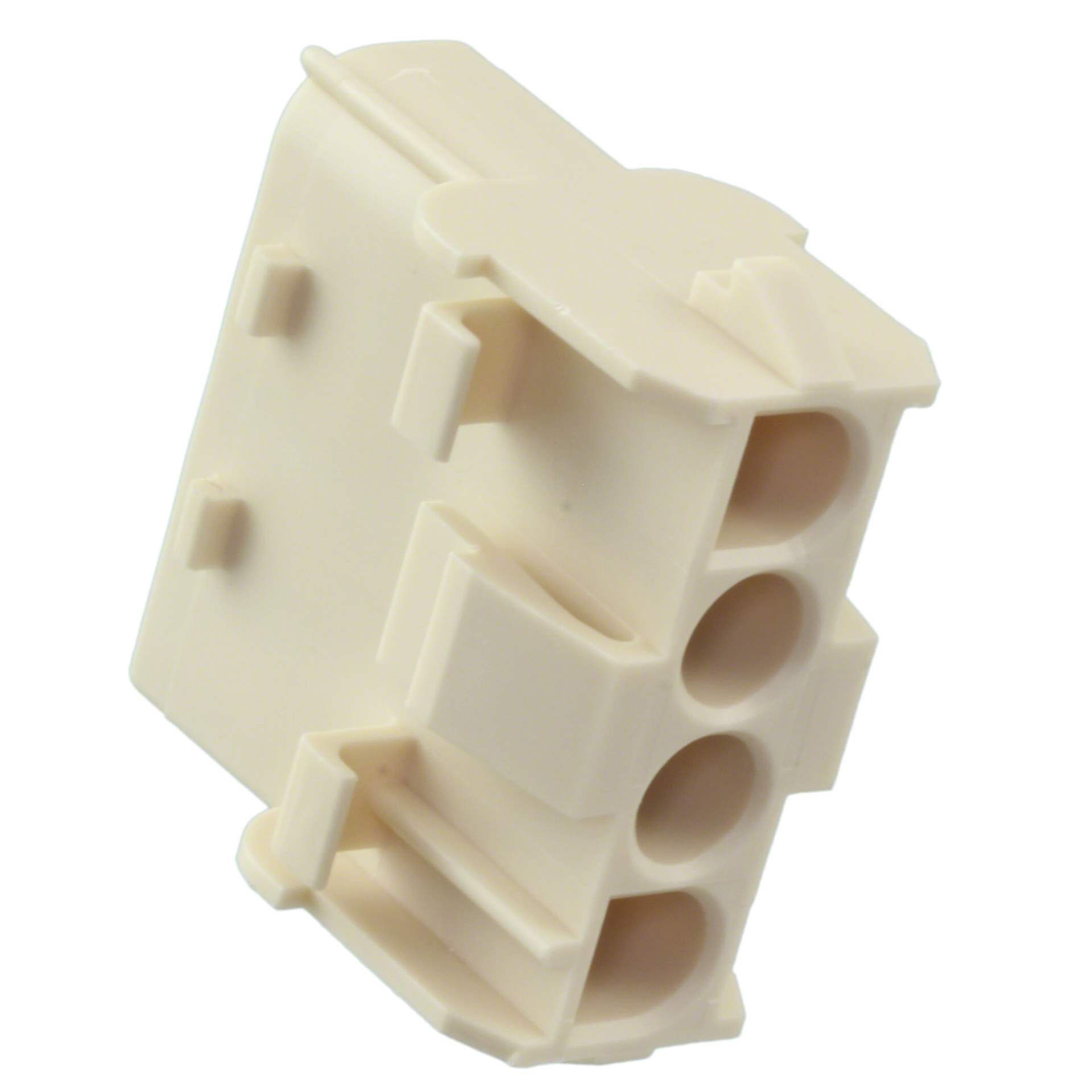

926305-7 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

926305-7

Part No 926305-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 4POS UNIV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209542-926305-7
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Rectangular Connectors -Rectangular Connector Housings
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Male or Female
Mounting Type Panel Mount
Contact Termination Crimp
Fastening Type Locking Ramp
Insulation Material Polyamide (PA6), Nylon 6
Ultra Librarian 3D Model Ultra Librarian 926305-7 CAD Model

Description

4 Rectangular Connectors - Housings Receptacle
