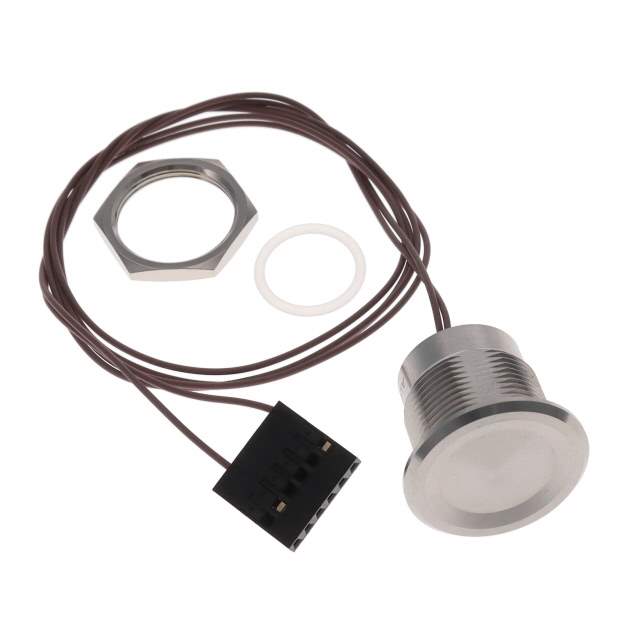

AVP19MS04C000T5A04 Real Image
Same model may have multiple batches, images only for reference.

AVP19MS04C000T5A04

Part No AVP19MS04C000T5A04
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST-NO 1A 24V  /  Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front
Datasheet
AVP19MS04C000T5A04 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series AVP
Package Bulk
Mounting Type Panel Mount, Front
Type Piezo, Anti-Vandal
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 24 V
Voltage Rating - DC 24 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Termination Style Wire Leads with Connector
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -20°C ~ 65°C
Mechanical Life 50,000,000 Cycles
Electrical Life 50,000,000 Cycles
Base Product Number AVP19
RoHS Status Not applicable
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2342841-3,450-3475
Standard Package 1
Win Source Part Number 976975-AVP19MS04C000T5A04
Ultra Librarian 3D Model Ultra Librarian AVP19MS04C000T5A04 CAD Model

Description

The AVP19MS04C000T5A04 pushbutton switch is a piezo, anti-vandal type switch with wire leads and connector termination style.

  • Panel Cutout: 19.20mm diameter, circular
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: round, button, flush
  • Voltage Rating: 24 V (AC/DC)
  • Current Rating: 1A
  • Electrical and Mechanical Life: 50,000,000 cycles
  • Ingress Protection: IP68 dust tight and waterproof
  • Actuator/Cap Color: silver
  • Actuator Marking: none
  • Mounting Type: panel mount, front mounting
  • Operating Temperature: -20°C to 65°C
  • REACH: affected
  • ECCN: EAR99
  • Manufacturer: TE Connectivity ALCOSWITCH Switches
  • Other Names: 2342841-3 and 450-3475
