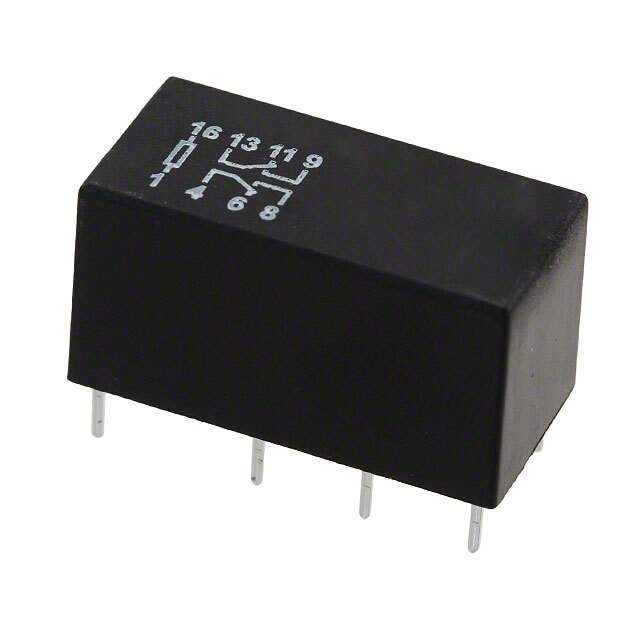

C93431 Real Image
Same model may have multiple batches, images only for reference.

C93431

Part No C93431
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MT2, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 23 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 15.6 VDC
Must Release Voltage 2.4 VDC
Operate Time 5 ms
Release Time 3 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type Telecom
Coil Resistance 1.05 kOhms
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315107-C93431
Ultra Librarian 3D Model Ultra Librarian C93431 CAD Model

Description

The MT2 series AXICOM relay from TE Connectivity Potter & Brumfield Relays is a DPDT (2 Form C) telecom relay.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2 A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.05 kOhms
  • Coil Current: 23 mA
  • Coil Type: Non-Latching
  • Operating Temperature Range: -55°C ~ 85°C
  • Must Operate Voltage: 15.6 VDC
  • Must Release Voltage: 2.4 VDC
  • Mounting Type: Through-Hole
  • Package: Tube
  • Release Time: 3 ms
  • Operate Time: 5 ms
  • RoHS Compliant: Yes
