Same model may have multiple batches, images only for reference.

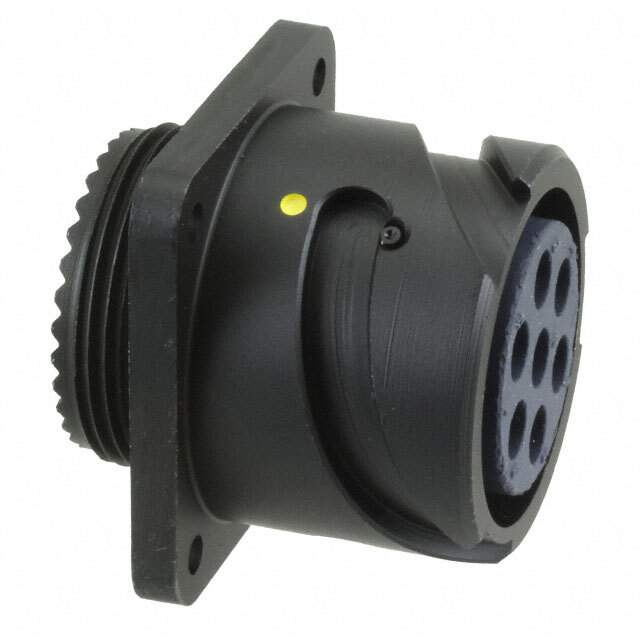

CIRH03T2015SCNF80M32V0 Real Image
Same model may have multiple batches, images only for reference.

CIRH03T2015SCNF80M32V0

Part No CIRH03T2015SCNF80M32V0
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CIRH
Package Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 7
Shell Size - Insert 20-15
Contact Type Crimp
Contact Size 12
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material Aluminum Alloy
Shell Finish Zinc Cobalt
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Note Contacts Not Included
Insert Material Rubber, Halogen Free
Contact Shape Circular
Temperature Range - Operating -55°C ~ 200°C
Base Product Number CIRH03
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315052-CIRH03T2015SCNF80M32V0
Ultra Librarian 3D Model Ultra Librarian CIRH03T2015SCNF80M32V0 CAD Model

Description

The TE Connectivity AMP Connectors CIRH03T2015SCNF80M32V0 is a circular connector housing used for female sockets.

  • Fastening Type: Bayonet Lock
  • Color: Black
  • Package: Housing Only
  • Contacts: Not Included
  • Mounting Type: Panel Mount
  • Temperature Range: -55°C to 200°C
  • ECCN: EAR99
