Same model may have multiple batches, images only for reference.

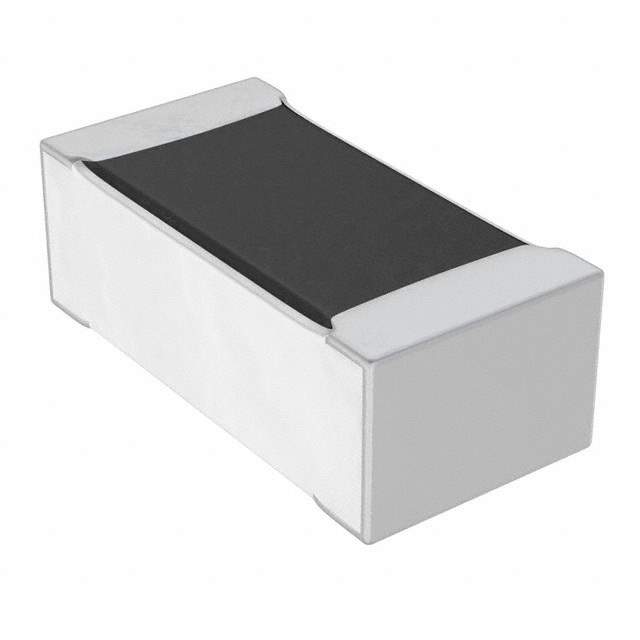

CPF0402B15KE1 Real Image
Same model may have multiple batches, images only for reference.

CPF0402B15KE1

Part No CPF0402B15KE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 0.1% 1/16W 0402  /  15 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel
Resistance 15 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 718792087,A102631DKR,A102631TR,A102631CT,7-1879208-7,7-1879208-7-ND
Standard Package 1,000
Win Source Part Number 1033629-CPF0402B15KE1
Ultra Librarian 3D Model Ultra Librarian CPF0402B15KE1 CAD Model

Description

The CPF series chip resistor is a thin film resistor with a resistance of 15 kOhms from Neohm.

  • Resistance: 15 kOhms
  • Tolerance: ±0.1%
  • Power Rating: 0.063W
  • Temperature Coefficient: ±25ppm/°C
  • Package: 0402 (1005 Metric)
  • Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.014" (0.35mm)
  • Package: Tape and Reel
  • Pieces: 1,000
  • Operating Temperature: -55°C to 155°C
