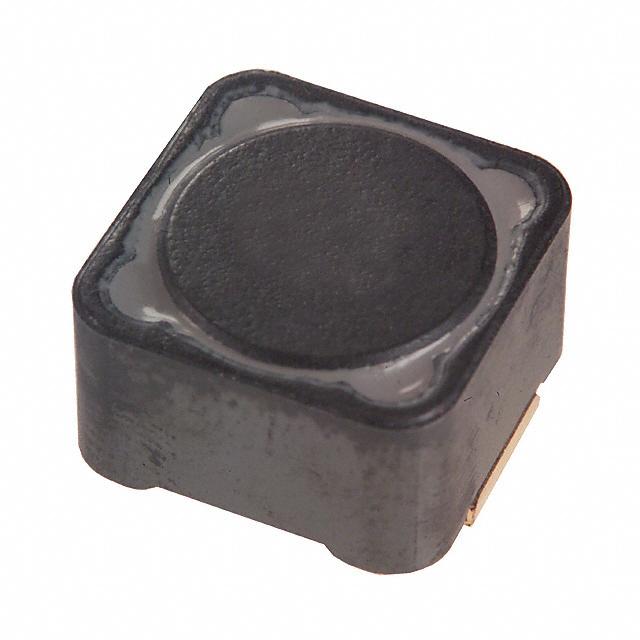

Same model may have multiple batches, images only for reference.

DQ1280-4R7M

Name: DQ1280-4R7M
Brand: TE Connectivity
SKU: 110710
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DQ1280-4R7M
Manufacturer	TE Connectivity
Catalog	Fixed Inductors
Description	4.7μH Shielded Inductor 13.5A 16 mOhm Max Nonstandard
Datasheet	DQ1280-4R7M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors,Coils,Chokes
Family	Fixed Inductors
Manufacturer	TE Connectivity
Series	DQ1280, Coev
Packaging	Reel(TR)
Inductance	4.7μH
Tolerance	±20%
Current Rating	13.5A
Current - Saturation	13.5A
Shielding	Shielded
DC Resistance	16 mOhm Max
Operating Temperature Range	-40°C ~ 85°C
Frequency - Test	100kHz
Mounting Style	SMD/SMT
Package	Nonstandard
Size / Dimension	0.504" L x 0.504" W (12.80mm x 12.80mm)
Height - Seated (Max)	0.315" (8.00mm)
Win Source Part Number	112769-DQ1280-4R7M
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian DQ1280-4R7M CAD Model

Alternative Products

Description

The DQ1280-4R7M is a versatile inductor that stands out for its ability to maintain performance across a wide range of applications. Its efficient design supports higher inductance in power circuits.

Features and Benefits

Compact and lightweight, ideal for portable applications.
Low acoustic noise for quiet operation.
Robust design for durability and long lifecycle.

Applications

Power supply modules
Handheld devices
LED drivers

With its superior efficiency and high-frequency operation, the DQ1280-4R7M meets the needs of advanced electronic applications.
