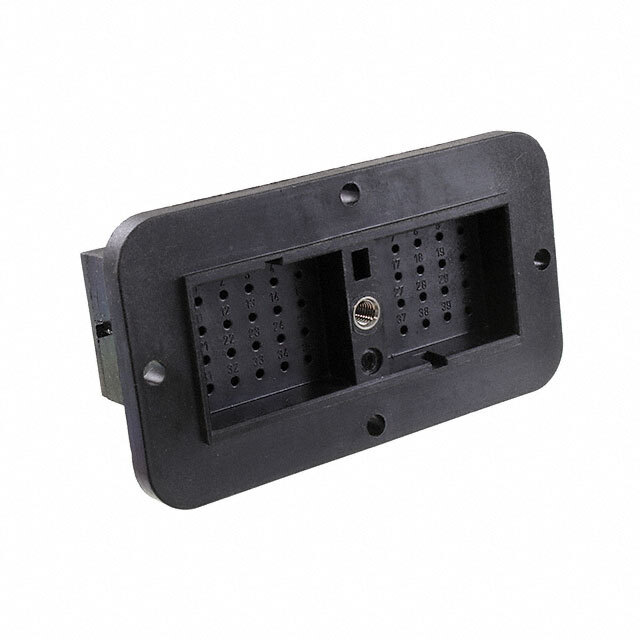

DRC13-40PA TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DRC13-40PA

Part No DRC13-40PA
Manufacturer TE Connectivity
Catalog Rectangular Connectors - Headers, Male Pins
Description 40P RECP ASM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.215" (5.46mm)
Number of Positions 40
Number of Rows 4
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.126" (3.20mm)
Insulation Height 1.985" (50.42mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Plastic
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 13A
Voltage Rating 250VAC/DC
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1611445-DRC13-40PA
Ultra Librarian 3D Model Ultra Librarian DRC13-40PA CAD Model
