Same model may have multiple batches, images only for reference.

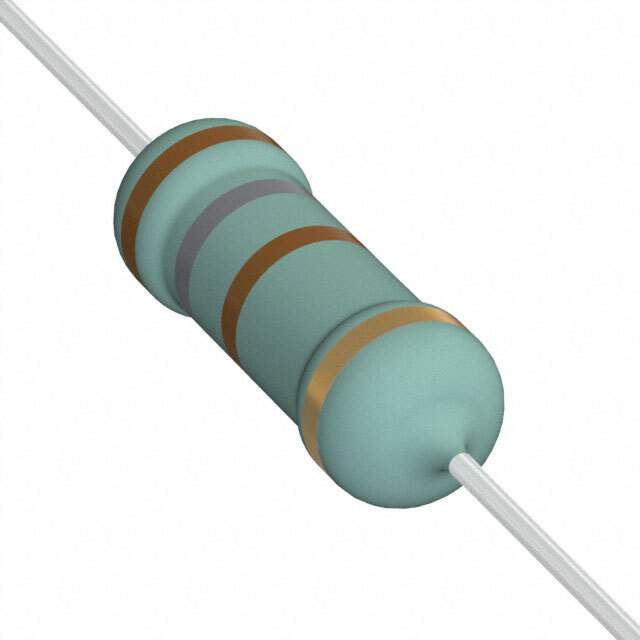

EP1W100RJ Real Image
Same model may have multiple batches, images only for reference.

EP1W100RJ

Part No EP1W100RJ
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 100 OHM 1W 5% AXIAL
Datasheet
EP1W100RJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TE Connectivity Passive Product
Series EP, Neohm
Packaging Tape in Box
Resistance (Ohms) 100
Tolerance ±5%
Power (Watts) 1W
Composition Wirewound
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient ±300ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package Axial
Manufacturer Package Axial
Dimension 0.197" Dia x 0.472" L (5.00mm x 12.00mm)
Number of Terminations 2
Win Source Part Number 761666-EP1W100RJ
Popularity Medium
Supply and Demand Status Limited
Family Name EP
Introduction Date March 29, 2012
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian EP1W100RJ CAD Model

Description

The TE Connectivity Passive Product EP series resistor is an axial resistor with a resistance of 100 Ohms and a tolerance of ±5%.

  • Type: Wirewound
  • Power Rating: 1W
  • Temperature Coefficient: ±300ppm/°C
  • Dimension: 0.197" Dia x 0.472" L (5.00mm x 12.00mm)
  • Coating: Flame retardant
  • Compliance: Pulse-withstanding and safety compliant
  • Packaging: Tape in box
  • Operating Temperature Range: -55°C ~ 155°C
  • Family Name: EP
  • Estimated EOL Date: 2029
  • Halogen-Free: Yes
