Same model may have multiple batches, images only for reference.

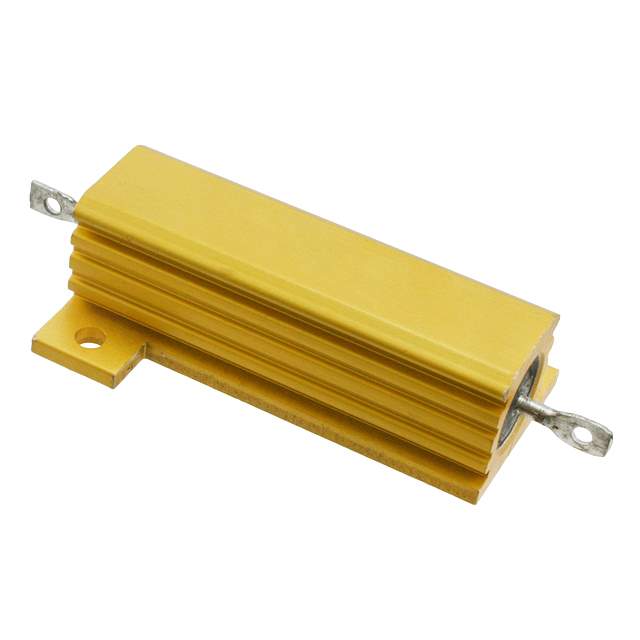

HSA502K2J Real Image
Same model may have multiple batches, images only for reference.

HSA502K2J

Part No HSA502K2J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.2K OHM 5% 50W  /  2.2 kOhms ±5% 50W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 2.2 kOhms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSA50
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 416259841,A102163,4-1625984-1,4-1625984-1-ND
Standard Package 100
Win Source Part Number 1038585-HSA502K2J
Ultra Librarian 3D Model Ultra Librarian HSA502K2J CAD Model

Description

The 1038585-HSA502K2J is a wirewound resistor with a resistance of 2.2 kOhms.

  • Resistance: 2.2 kOhms
  • Mounting Type: Chassis Mount
  • Power Rating: 50W
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Package: Axial, Box with Flanges
  • Coating: Aluminum
  • Dimensions: 2.008" L x 1.181" W (51.00mm x 30.00mm)
  • Height: 0.669" (17.00mm)
  • Series: HS and CGS
  • Packaging: Bulk
