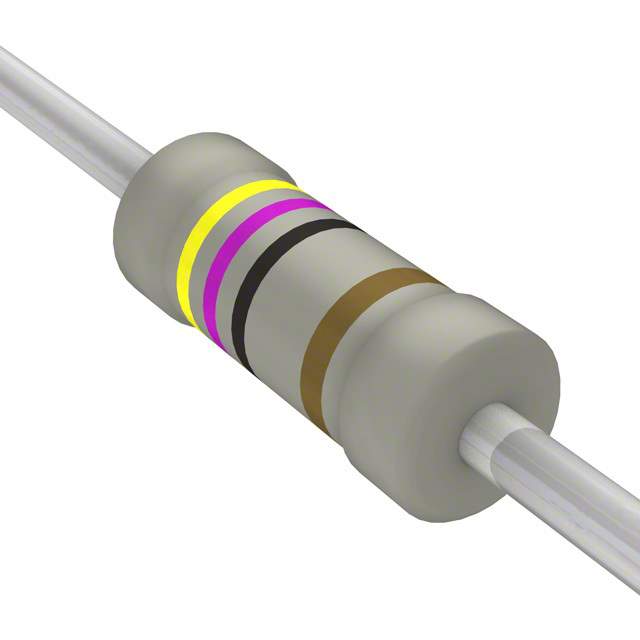

LR1F47R Real Image
Same model may have multiple batches, images only for reference.

LR1F47R

Part No LR1F47R
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 47 OHM 1% 0.6W AXIAL  /  47 Ohms ±1% 0.6W Through Hole Resistor Axial Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Package Tape & Box (TB)
Resistance 47 Ohms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
Number of Terminations 2
Base Product Number LR1F
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names 1622489-1-ND,1622489-1
Standard Package 12,000
Win Source Part Number 998700-LR1F47R
Ultra Librarian 3D Model Ultra Librarian LR1F47R CAD Model

Description

The Neohm LR series resistor is a metal film composition resistor with a resistance of 47 ohms and a power rating of 0.6W.

  • Series: LR
  • Composition: Metal Film
  • Resistance: 47 ohms
  • Power Rating: 0.6W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package/Case: Axial
  • Device Package: Axial
  • Operating Temperature Range: -55°C ~ 155°C
  • Standard Package: 12,000
