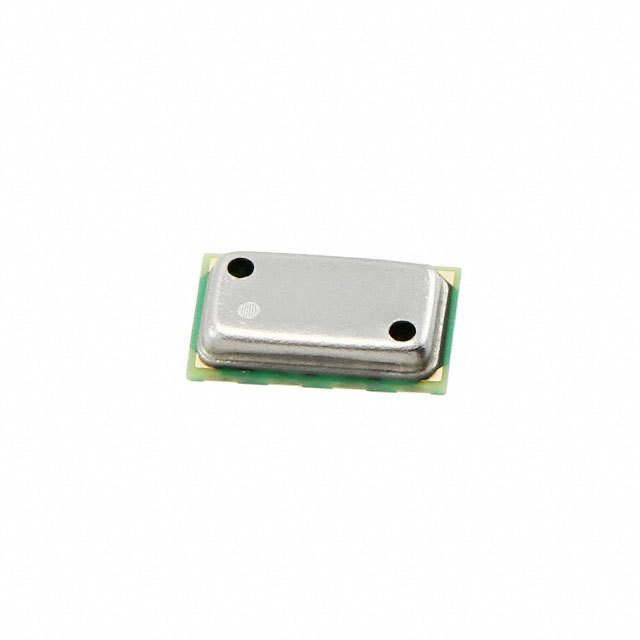

MS560702BA03-50 TE Connectivity MS560702BA03-50 Real Image
Same model may have multiple batches, images only for reference.
MS560702BA03-50 TE Connectivity MS560702BA03-50 Real Image
MS560702BA03-50 TE Connectivity MS560702BA03-50 Real Image
Same model may have multiple batches, images only for reference.

MS560702BA03-50

Part No MS560702BA03-50
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description BAROMETRIC PRESSURE SENSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Status Active
Pressure Type Absolute
Operating Pressure 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa)
Output Type I2C, SPI
Output 24 b
Accuracy ±0.022 PSI (±0.15 kPa)
Supply Voltage - Operating 1.8 V to 3.6 V
Port Style No Port
Termination Style Solder Pad
Maximum Pressure 87.02 PSI (600 kPa)
Temperature Range - Operating -40°C to 85°C
Case / Package 8-SMD
Win Source Part Number 130115-MS560702BA03-50
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MS560702BA03-50 CAD Model

Description

TE Connectivity Measurement Specialties Sensor is an 8-SMD package type sensor that features an output type of I2C, SPI, and an output of 24 b.

  • Accuracy: ±0.022 PSI (±0.15 kPa)
  • Pressure Range: 0.15 PSI to 17.4 PSI (1 kPa to 120 kPa)
  • Port Style: No port style
  • Maximum Pressure: 87.02 PSI (600 kPa)
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.8 V to 3.6 V
  • The TE Connectivity Measurement Specialties Sensor is suitable for use in applications such as automotive, industrial, and medical equipment.
