Same model may have multiple batches, images only for reference.

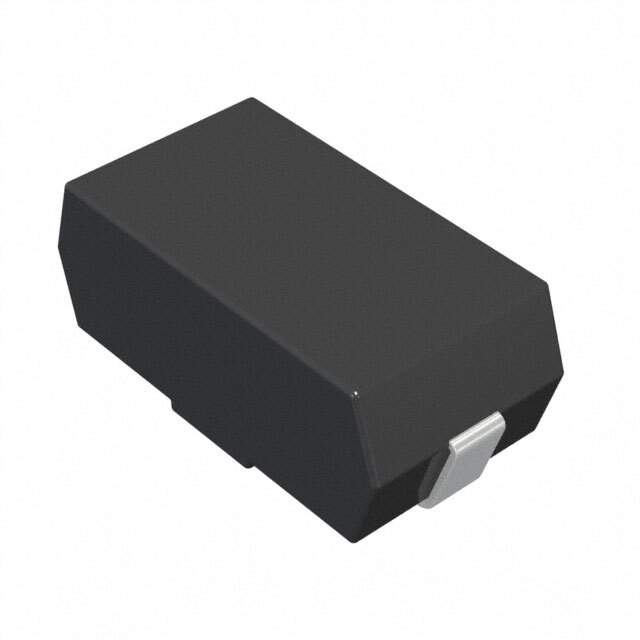

SMV1W3M3JT Real Image
Same model may have multiple batches, images only for reference.

SMV1W3M3JT

Part No SMV1W3M3JT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description SMV 1W 3M3 5%  /  3.3 MOhms ±5% 1W Chip Resistor 2616 (6740 Metric), J-Lead Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMV
Package Tape & Reel
Resistance 3.3 MOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMV1
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A130776DKR,A130776TR,A130776CT,1-2176322-9
Standard Package 2,000
Win Source Part Number 1037895-SMV1W3M3JT
Ultra Librarian 3D Model Ultra Librarian SMV1W3M3JT CAD Model

Description

The SMV1W3M3JT is a chip resistor - surface mount from TE Connectivity Passive Product.

  • Resistance: 3.3 MOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Height: 0.152" (3.85mm)
  • Package/Case: 2616 (6740 Metric), J-Lead
  • Status: Obsolete product
  • Standard Package: 2,000
  • Temperature Range: -65°C to 200°C
  • REACH Status: REACH unaffected
