Same model may have multiple batches, images only for reference.

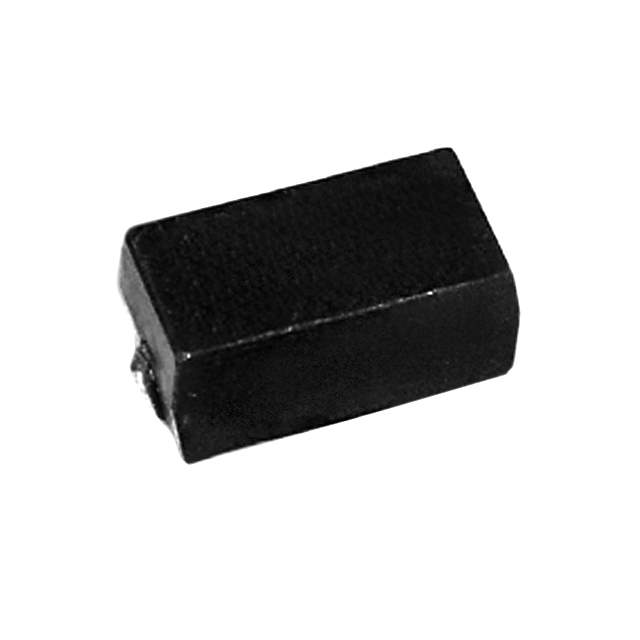

SMW2180RJT Real Image
Same model may have multiple batches, images only for reference.

SMW2180RJT

Part No SMW2180RJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 180 OHM 5% 2W 2616  /  180 Ohms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMW, CGS
Package Tape & Reel
Resistance 180 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Features Flame Retardant Coating, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMW2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A103589TR,A103589CT,7-1676966-9,716769669,7-1676966-9-ND,A103589DKR
Standard Package 2,000
Win Source Part Number 986773-SMW2180RJT
Ultra Librarian 3D Model Ultra Librarian SMW2180RJT CAD Model

Description

The TE Connectivity SMW2180RJT is a chip resistor that is surface mountable.

  • Manufacturer: TE Connectivity
  • Series: SMW and CGS
  • Coating: Flame Retardant
  • Packaging: Tape and Reel
  • Standard Package: 2,000
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 2W
  • Type: Wirewound
  • Terminations: 2
  • Resistance: 180 Ohms
  • Package/Case: J-lead surface mount 2616 (6740 Metric)
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
