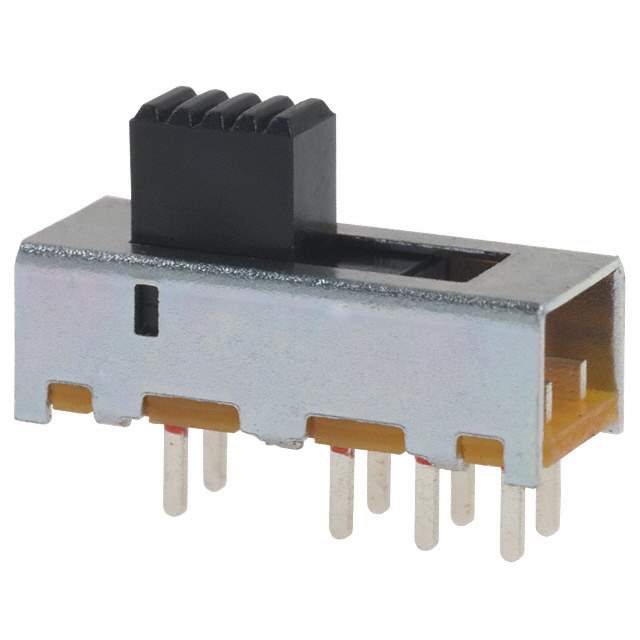

STS2300PC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Obsolete(EOL)
Circuit DP3T
Contact Timing Shorting (MBB)
Switch Function On-On-On
Current Rating 300mA (AC)
Voltage Rating - AC 125V
Actuator Type Standard
Actuator Length 4.00mm
Contact Finish Silver
Mounting Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.50mm
Temperature Range - Operating -10°C to 60°C
Mechanical Life 10,000 Cycles
Operating Force 250gf
Win Source Part Number 110032-STS2300PC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STS2300PC CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 110032-STS2300PC is a DP3T switch with On-On-On switch function. It has a termination style of PC Pin and features epoxy-sealed terminals.

  • Contact Finish: silver
  • Current Rating: 300mA (AC)
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Voltage Rating - AC: 125V
  • Mounting Style: through-hole
  • Contact Timing: shorting (MBB)
  • Actuator Type: standard
  • Actuator Length: 4.00mm
  • Switch Travel: 2.50mm
  • Operating Force: 250gf
  • Mechanical Life: 10,000 cycles
  • Supply and Demand Status: balanced
  • Win Source Part Number: 110032-STS2300PC
