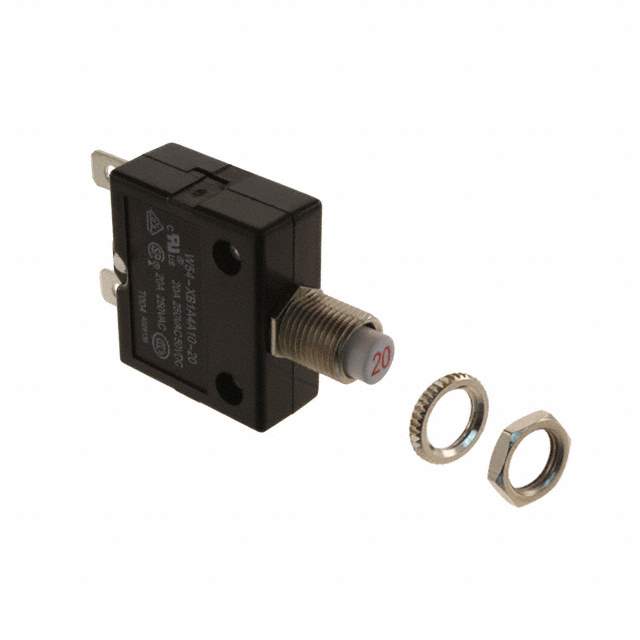

W54-XB1A4A10-20 Real Image
Same model may have multiple batches, images only for reference.

W54-XB1A4A10-20

Part No W54-XB1A4A10-20
Manufacturer TE Connectivity
Catalog Circuit Breakers
Description CIR BRKR THRM 20A 250VAC / Circuit Breaker Thermal 20A 250 V AC DC Push to Reset Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Circuit Breakers
Mfr TE Connectivity Potter & Brumfield Relays
Series W54
Package Tray
Mounting Type Panel Mount
Breaker Type Thermal
Current Rating (Amps) 20A
Voltage Rating - AC 250 V
Actuator Type Push to Reset
Number of Poles 1
Base Product Number W54
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.20.0020
Other Names W54XB1A4A1020,W54-XB1A4A10-20-NDR,1423674-9,W54-XB1A4A10-20-ND,PB1046
Standard Package 100
Win Source Part Number 995582-W54-XB1A4A10-20
Ultra Librarian 3D Model Ultra Librarian W54-XB1A4A10-20 CAD Model

Description

This circuit breaker is part of the W54 series manufactured by TE Connectivity Potter & Brumfield Relays.

  • Series: W54
  • Voltage Rating: 250V AC
  • Current Rating: 20A
  • Actuator Type: Push to reset
  • Mount: Panel mount
  • MSL Level: Not applicable
  • HTSUS: 8536.20.0020
