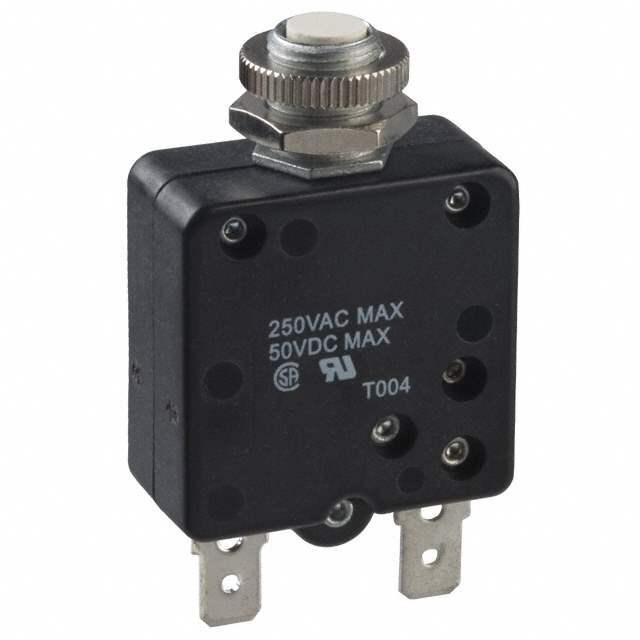

W58-XB1A4A-25 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

W58-XB1A4A-25

Part No W58-XB1A4A-25
Manufacturer TE Connectivity
Catalog Circuit Breakers
Description CIR BRKR THRM 25A 250VAC 50VDC
Datasheet
W58-XB1A4A-25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305815-W58-XB1A4A-25
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Circuit Protection -Circuit Breakers
Packaging  Tray
Part Status Active
Mounting Type Panel Mount
Breaker Type Thermal
Current Rating (Amps) 25A
Voltage Rating - AC 250 V
Voltage Rating - DC 50 V
Actuator Type Push to Reset
Ultra Librarian 3D Model Ultra Librarian W58-XB1A4A-25 CAD Model

Description

W58 Series is UL 1077 Recognized as Supplementary Protectors, File E69543 and meets Ignition Protection requirements in accordance with UL 1500. W58 Series is also CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.
