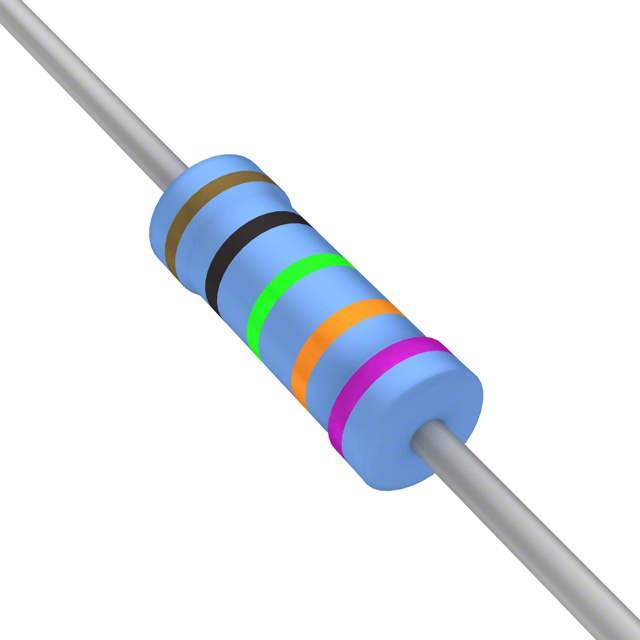

Same model may have multiple batches, images only for reference.
YR1B105KCC Vishay
Same model may have multiple batches, images only for reference.

YR1B105KCC

Part No YR1B105KCC
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 105K OHM 0.1% 1/4W AXIAL
Datasheet
YR1B105KCC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307025-YR1B105KCC
Manufacturer TE Connectivity Passive Product
Category Resistors-Through Hole Resistors
Packaging  Tape & Box (TB)
Part Status Active
Resistance (Ohms) 105 kOhms
Tolerance (+ or -) ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Temperature Coefficient ±15ppm/°C
Operating Temperature -65°C ~ 155°C
Ultra Librarian 3D Model Ultra Librarian YR1B105KCC CAD Model

Description

The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. All resistors are tested for value and tolerance.
