Products specifications

Manufacturer Teccor Electronics
Win Source Part Number 1245432-S4035K
Manufacturer Homepage www.littelfuse.com/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S4035K CAD Model

Description

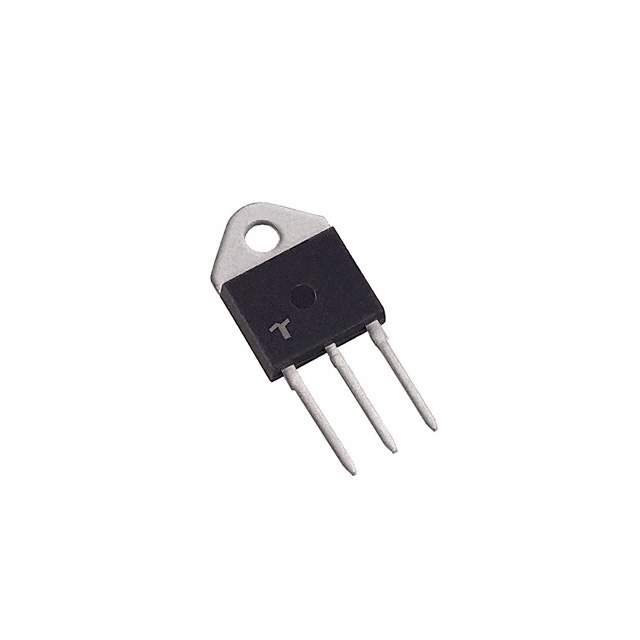

The S4035K is a silicon bidirectional solid-state switch (TRIAC) manufactured by Teccor Electronics (now part of Littelfuse). It's designed for AC power control applications, offering a reliable and efficient solution for switching and regulating alternating current in various electrical devices.

Applications:

  • Motor Speed Control: Used to control the speed of AC motors in appliances and industrial equipment.
  • Light Dimmers: Implemented in light dimmers to adjust the brightness of incandescent and some LED lamps.
  • Heater Control: Controls the power supplied to electric heaters in appliances and HVAC systems.
  • Solid State Relays (SSR): Used as the switching element in SSRs for reliable and isolated AC power control.
  • AC Power Switching: Provides on/off control of AC power to various electrical loads.

Features:

  • Bidirectional Switching: Can switch AC current in both directions.
  • High Blocking Voltage: Withstands high voltage levels in the off-state.
  • Low On-State Voltage: Minimizes power dissipation during conduction.
  • High Surge Current Capability: Can handle high surge currents without damage.
  • Sensitive Gate Triggering: Requires a small gate current to trigger the TRIAC.

Benefits:

  • Efficient Power Control: Reduces power losses in AC power control applications.
  • Reliable Switching: Provides consistent and reliable AC switching performance.
  • Versatile Application: Suitable for a wide range of AC power control and switching circuits.
  • Simplified Circuit Design: Requires minimal external components for operation.

Additional Details:

The S4035K is typically available in a TO-220 package. Key parameters to consider when using the S4035K are the blocking voltage (VDRM), on-state current (IT(RMS)), and gate trigger current (IGT). It is essential to consult the Littelfuse (formerly Teccor Electronics) datasheet for detailed electrical characteristics, thermal resistance, and surge current ratings. Proper heatsinking may be required depending on the load current and operating conditions. The S4035K's bidirectional switching capability, high blocking voltage, and sensitive gate triggering make it a versatile and reliable choice for various AC power control applications. Always use appropriate safety measures when working with AC power circuits.
