74HC10E

Part No 74HC10E
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters

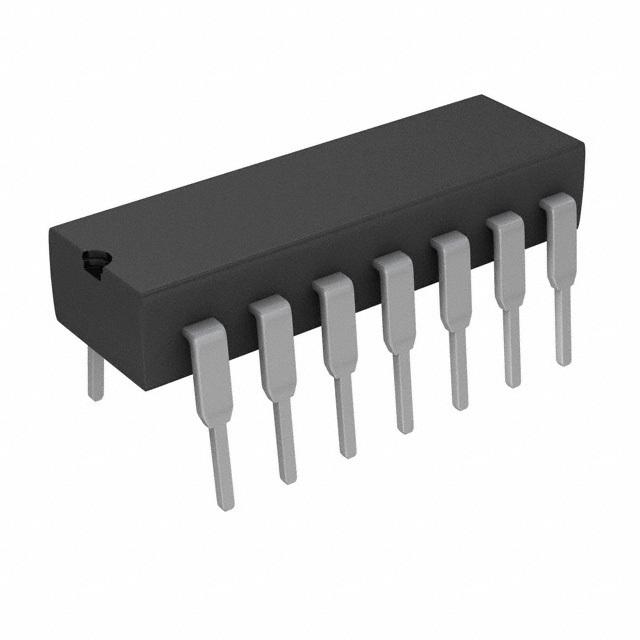

Description IC GATE NAND 3CH 3-INP 14-DIP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Logic Type NAND Gate
Number of Circuits 3
Number of Inputs 3
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.5 V to 1.8 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Case / Package 14-PDIP
Dimension 14-DIP (0.300", 7.62mm)
Win Source Part Number 198141-74HC10E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74HC10E CAD Model

Description

74HC10E - Triple 3-Input NAND Gate

The 74HC10E provides a high-speed alternative for logic gate applications. Incorporating low-power consumption and an expanded noise immunity range, it is highly effective for modern electronic circuits.

  • Applications:
    • Arithmetic logic units
    • Switching circuits
    • Data transmission systems
    • Control systems
  • Features and Benefits:
    • Exceptionally low-input current: protects the device from noise disturbance
    • Air-tight package: extends operational reliability
    • Versatile temperature range: applicable in diverse environmental conditions
  • Additional Details:

Its negligible input current also makes it useful in sensitive logic operations where interference can be a concern.
