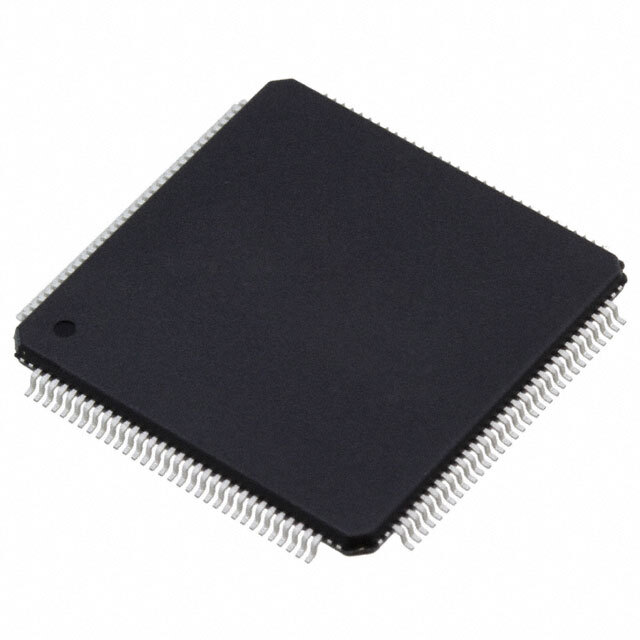

Product Overview: ADC08500CIYB/NOPB

The ADC08500CIYB/NOPB is a high-performance, low-power, 8-bit analog-to-digital converter (ADC) produced by Texas Instruments. This cutting-edge component is designed for speed and accuracy, making it an ideal choice for a wide range of applications, including data acquisition systems, digital signal processing, and high-speed imaging.

Key Features

• High-Speed Operation: With a sampling rate of up to 500 MSPS (Mega Samples Per Second), this ADC offers exceptional speed, allowing for the rapid conversion of analog signals to digital data.
• Resolution: The 8-bit resolution ensures that the digital representation of the analog signal is precise, providing accurate readings for critical applications.
• Low Power Consumption: Despite its high-speed capabilities, the ADC08500CIYB/NOPB is designed to be power-efficient, which is critical for portable and battery-operated devices.
• Differential Inputs: The differential input structure provides improved noise immunity and allows for the accurate measurement of small signal amplitudes.
• Internal Sample-and-Hold: The built-in sample-and-hold circuitry simplifies system design by eliminating the need for external components.
• Adjustable Input Range: Users can adjust the input range to match the amplitude of the input signal, ensuring optimal conversion and dynamic range.

Applications

The versatility of the ADC08500CIYB/NOPB makes it suitable for a variety of high-speed applications, including:

• Medical Imaging Systems
• Test and Measurement Equipment
• Communication Systems
• Video and Image Processing
• Radar and Satellite Systems

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the ADC08500CIYB/NOPB is no exception. This product is available in a compact 32-lead LLP package and is characterized for operation over the industrial temperature range of -40°C to 85°C. With its robust design and proven reliability, the ADC08500CIYB/NOPB from Texas Instruments is a solid choice for designers looking to enhance the performance of their high-speed signal processing systems.
