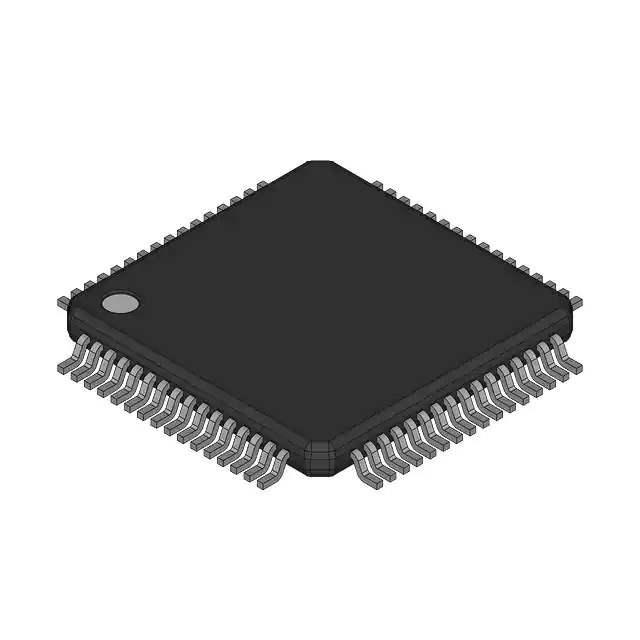

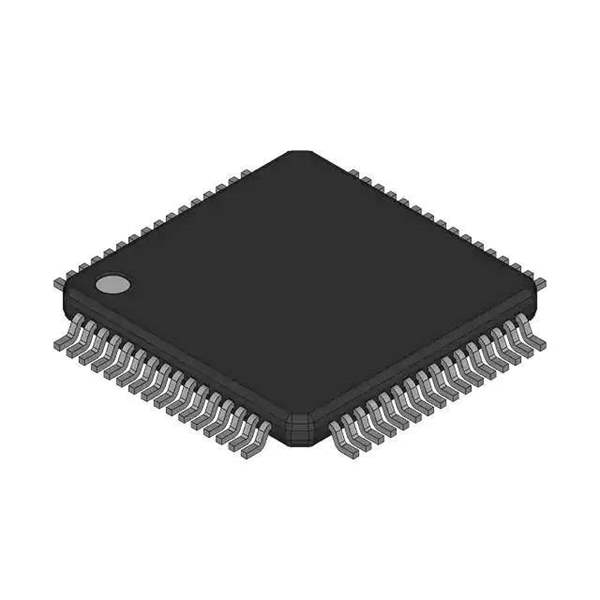

The ADS2806Y is a high-performance, 16-bit, 10MSPS analog-to-digital converter (ADC) from Texas Instruments. Designed with precision and speed in mind, it is ideal for a wide array of applications, including medical imaging, test equipment, and communication systems.

Key Features

• High Resolution: The ADS2806Y offers a 16-bit resolution, providing high-precision data conversion which is critical for sensitive applications where accuracy is paramount.
• Fast Sampling Rate: With a sampling rate of up to 10 Mega-samples per second (MSPS), this ADC is well-suited for high-speed signal processing, ensuring minimal lag in data acquisition.
• Low Power Consumption: Despite its high performance, the ADS2806Y is designed for efficiency, featuring low power consumption that makes it suitable for portable and battery-powered applications.
• Flexible Interface: It includes a parallel interface with a flexible input range, simplifying the integration with a variety of microprocessors and digital systems.
• Differential Inputs: The differential input structure provides improved noise immunity, which is crucial for maintaining signal integrity in noisy environments.

Applications

The ADS2806Y is versatile and can be utilized in multiple domains, including:

• Medical Imaging Systems
• Professional Test and Measurement Equipment
• Data Acquisition Systems
• Communication Infrastructure
• Scientific Instruments

Technical Specifications

For engineers and designers looking for a reliable and high-performance ADC, the ADS2806Y from Texas Instruments stands out as an exceptional choice that balances speed, precision, and power efficiency.
