ADS5424IPJY

Part No ADS5424IPJY
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)

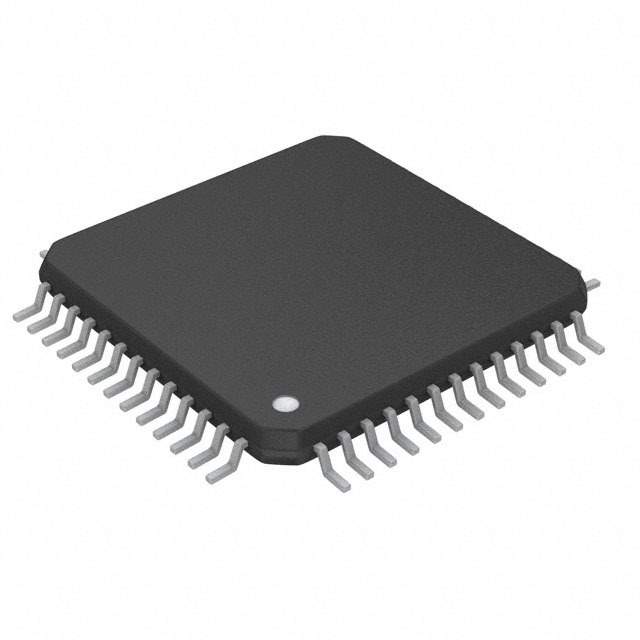

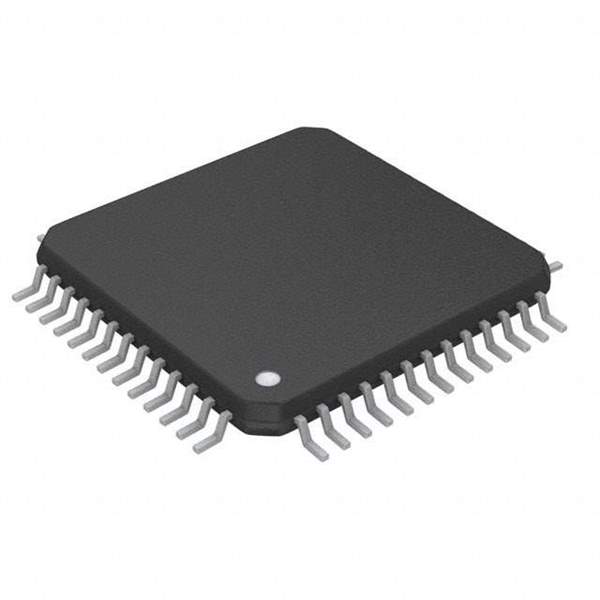

Description IC ADC 14BIT 105MSPS 52-QFP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Number of Bits 14
Sampling Rate 105M
Number of Inputs 1
Input Type Differential
Data Interface Parallel
Configuration S/H-ADC
Number of A/D Converters 1
Reference Type Internal
Analog Supply Voltage 5V
Digital Supply Voltage 5V
Temperature Range - Operating -55°C to 125°C
Case / Package 52-QFP (10x10)
Win Source Part Number 140505-ADS5424IPJY
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS5424IPJY CAD Model

Description

Overview

The ADS5424IPJY is a high-speed, high-resolution analog-to-digital converter that offers 14-bit resolution at sample rates of up to 105 MSPS. This component is well-suited for systems that require fast and accurate data processing capabilities.

Features and Benefits

  • Resolution: 14-bit for detailed signal representation
  • Sample Rate: Up to 105 MSPS for rapid data acquisition
  • Latency: Designed with minimal latency for real-time applications
  • Power Efficiency: Optimized power usage to support extended operation
  • Package: Comes in a space-efficient package ideal for high-density circuit boards

Applications

  • Digital Oscilloscopes
  • Wireless Communication Systems
  • High-Speed Data Loggers
  • Sonar and Industrial Imaging Systems

Additional Information

The ADS5424IPJY's compact and efficient design allows it to be integrated into a variety of applications, offering flexibility and ease of use in demanding environments.
