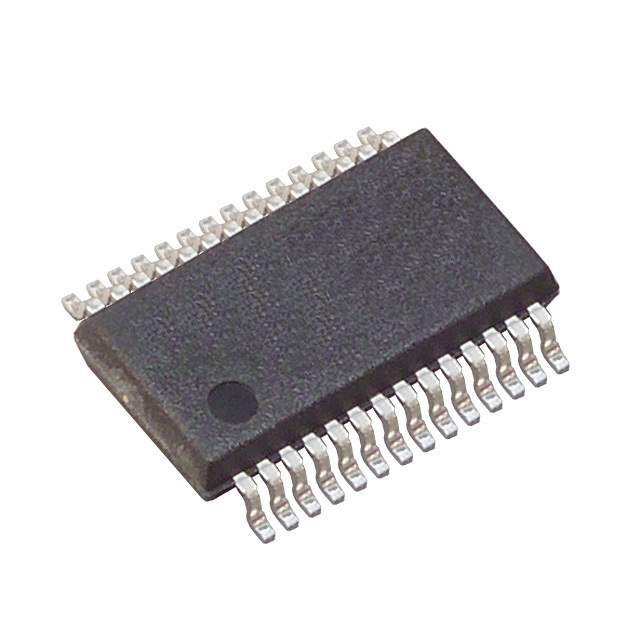

ADS805E Real Image
Same model may have multiple batches, images only for reference.

ADS805E

Part No ADS805E
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC 12-BIT 20MHZ A/D 28-SSOP
Datasheet
ADS805E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Number of Bits 12
Sampling Rate 20M
Number of Inputs 1
Input Type Differential, Single Ended
Data Interface Parallel
Configuration S/H-ADC
Number of A/D Converters 1
Reference Type External, Internal
Analog Supply Voltage 5V
Digital Supply Voltage 5V
Temperature Range - Operating -40°C to 85°C
Case / Package 28-SSOP
Win Source Part Number 083060-ADS805E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS805E CAD Model

Description

ADS805E - High-Speed 12-Bit Converter

The ADS805E ADC offers high-speed data conversion and enhanced accuracy for industrial applications demanding rapid processing speeds and exquisite precision.

Features and Benefits

  • 12-bit resolution to ensure precise data capture
  • Innovative architecture optimizing speed up to 20MSPS
  • Low power operation supporting portable devices
  • Designed for diverse temperature environments
  • Compact size suited for modern electronic designs

Applications and Projects

  • Telecommunication systems
  • Advanced medical diagnostic tools
  • High-speed data logging
  • Embedded control systems
  • Scientific instrumentation

Optimized for speed and precision, the ADS805E is perfect for developers innovating within high-demand sectors.
