Products specifications

Category Integrated Circuits (ICs) - Logic - Counters, Dividers
Mfr Texas Instruments
Series 4000
Package Tube
Product Status Obsolete
Logic Type Divide-by-N
Direction Down
Number of Elements 1
Number of Bits per Element 16
Reset Asynchronous
Count Rate 12 MHz
Trigger Type Positive Edge
Voltage - Supply 3 V ~ 12 V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole

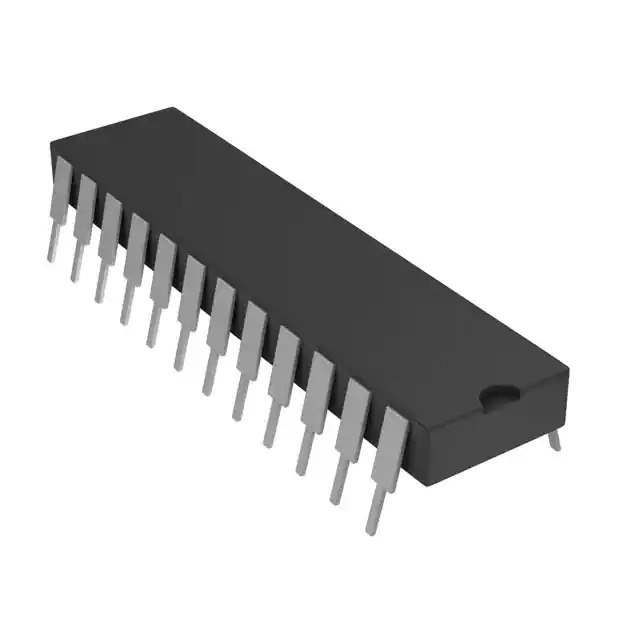

Package / Case 24-DIP (0.600", 15.24mm)
Supplier Device Package 24-PDIP
Base Product Number CD4059
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 577013-CD4059AE
Ultra Librarian 3D Model Ultra Librarian CD4059AE CAD Model

Description

The CD4059AE from Texas Instruments is a versatile CMOS Programmable Divide-by-N Counter designed for use in a wide range of digital applications, including frequency synthesis and division, time delay generation, and real-time clock functionalities.

Key Features

  • Programmable Division Factor: The counter can be programmed to divide a frequency by any number from 3 to 15,999 using a combination of binary and BCD (Binary-Coded Decimal) inputs.
  • High Voltage Type (20V Rating): This component can handle a maximum voltage of 20V, making it suitable for various high voltage applications.
  • Wide Operating Temperature Range: CD4059AE operates reliably over a temperature range of -55°C to +125°C, ensuring stability in diverse environments.
  • Multiple Counting Modes: It offers several counting modes, including frequency division, inhibit counting, and a complete jam setting to the zero state, allowing for flexible usage in different scenarios.

Applications

Due to its programmability and robustness, the CD4059AE is ideal for a variety of applications:

  • Frequency synthesizers for radio and telecommunications
  • Time delay circuits in alarm and control systems
  • Real-time clocks for timekeeping devices
  • Programmable timers for industrial control systems

Technical Specifications

Parameter Value Supply Voltage Range 3V to 18V Operating Temperature -55°C to +125°C Package Type DIP-24 (Dual In-line Package) Frequency Division Range 3 to 15,999

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the CD4059AE is no exception. It is manufactured to the highest standards, ensuring that it meets the rigorous demands of both commercial and industrial applications.

For detailed information, technical documents, and support, visit the Texas Instruments official website or contact your local TI distributor.
