Products specifications

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Circuits 1
Max On Resistance 240 Ohm
Channel-to-Channel Matching (ΔRon) 5 Ohm
Single Supply Voltage (V+) 3 V to 18 V
-3db Bandwidth 14MHz
Channel Capacitance(CS off, CD off) 0.2pF, 55pF
Max Leakage Current (IS off) 100nA
Temperature Range - Operating -55°C to 125°C (TA)
Case / Package 24-PDIP
Win Source Part Number 127665-CD4067BE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CD4067B
Introduction Date November 01, 2003
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CD4067BE CAD Model

Description

CD4067BE Description

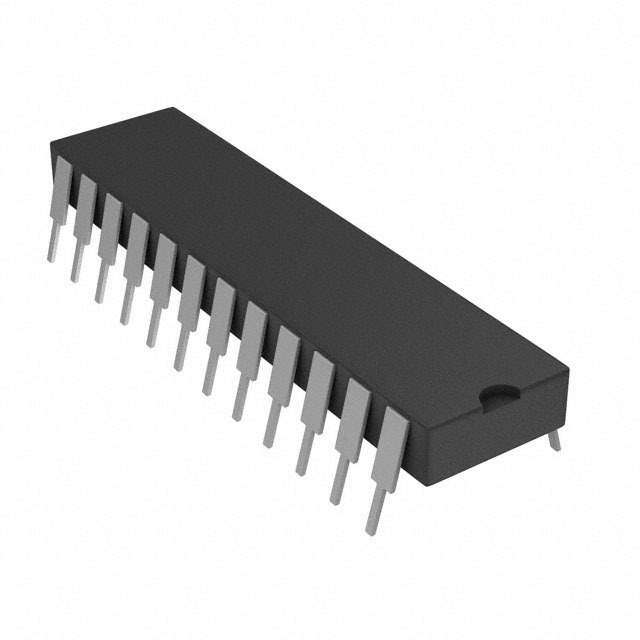

The CD4067BE is a 16-channel analog multiplexer/demultiplexer enhanced for high-fidelity circuitry and signal management. This DIP-24 package provides seamless routing for analog signals and optimized control interfaces, ensuring minimal distortion and maximal performance.

Features and Benefits

  • 24-pin package for comprehensive functionality
  • Wide VCC range: 3V to 15V
  • Efficient low on-resistance charateristics
  • Supports analog signal multiplexing and demultiplexing

Applications and Projects

  • Multiple sensor interfacing
  • Complex audio processing
  • Signal routing in automotive electronics
  • Data acquisition systems

The CD4067BE stands as a highly adaptable multiplexer solution, ideal for engineers looking to advance in analog systems development and signal processing applications.
