Products specifications

Category Integrated Circuits (ICs) - Logic - Gates and Inverters - Multi-Function, Configurable
Mfr Texas Instruments
Series 4000B
Package Tube
Product Status Discontinued
Logic Type NOR/OR Gate
Number of Circuits 1
Number of Inputs 8
Schmitt Trigger Input No
Output Type Single-Ended
Current - Output High, Low 6.8mA, 6.8mA
Voltage - Supply 3V ~ 18V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Base Product Number CD4078
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 577068-CD4078BM
Ultra Librarian 3D Model Ultra Librarian CD4078BM CAD Model

Description

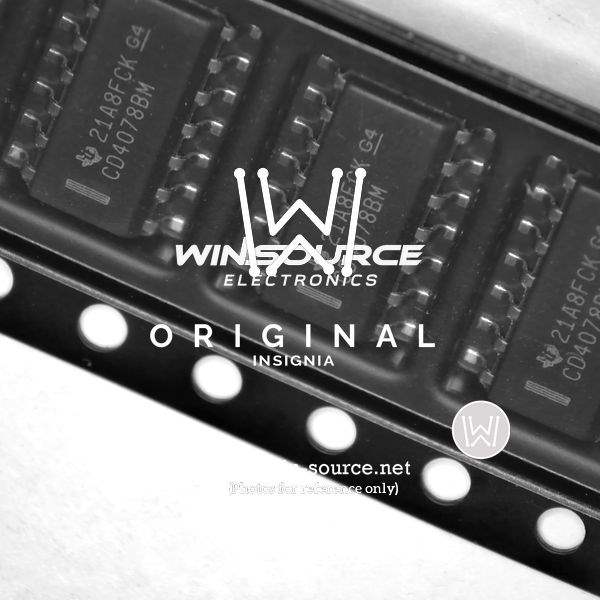

Texas Instruments CD4078BM CMOS 8-Input NOR/OR Gate

The Texas Instruments CD4078BM is a high-performance CMOS 8-input NOR/OR gate integrated circuit designed to meet a wide range of digital logic needs. This versatile chip is part of the 4000 series logic family, renowned for its reliability and ease of use in implementing logic functions in electronic circuits.

The CD4078BM offers a combination of eight inputs, which can be utilized to create complex logic expressions by configuring the inputs as either NOR or OR functions. This allows designers to minimize the number of components needed for their digital systems, thereby simplifying design and reducing overall costs.

Constructed with silicon gate CMOS technology, the CD4078BM boasts a low power consumption that is critical for battery-powered and energy-sensitive applications. It operates over a wide voltage range of 3V to 18V, providing flexibility in various operating environments and compatibility with other logic families when used with appropriate interfacing.

The device is available in a compact 14-pin SOIC package, making it suitable for use in space-constrained applications. It is characterized for operation from -55°C to +125°C, ensuring reliable performance in extreme conditions, which is essential for industrial and automotive applications.

Key features of the CD4078BM include:

  • Standardized, symmetrical output characteristics for balanced propagation delays.
  • High noise immunity to ensure stable operation in electrically noisy environments.
  • Low power TTL compatibility, which allows for direct interfacing with TTL logic without additional components.
  • High fan-out capability, supporting multiple connections without signal degradation.

Whether you're designing consumer electronics, automotive systems, or complex industrial machinery, the Texas Instruments CD4078BM provides a reliable and efficient solution for implementing NOR and OR logic functions. Its robust design and versatile performance make it an excellent choice for a wide array of digital applications.
