ON Semiconductor NLX1G97AMX1TCG - Flexible Logic Gate Solution

The NLX1G97AMX1TCG from ON Semiconductor is a versatile and high-performance configurable multiple-function gate that is designed to meet a wide range of application needs. This innovative product is part of ON Semiconductor's broad portfolio of logic devices, which are known for their reliability and efficiency.

Key Features

• Configurable Gate Options: The NLX1G97AMX1TCG is capable of being configured to perform seven different functions, including AND, OR, NAND, NOR, XOR, XNOR, and NOT operations. This flexibility allows designers to use the same part for different functions in various circuits, optimizing inventory management and reducing costs.
• Advanced Technology: Built using advanced CMOS technology, the device offers a low-power and high-speed solution for modern electronic applications. Its CMOS construction also ensures low static power consumption, making it an excellent choice for battery-powered devices.

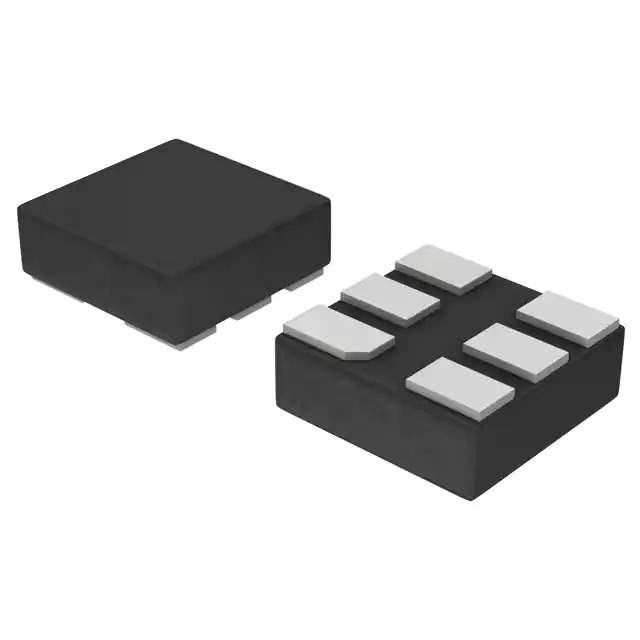

• Compact Footprint: The device comes in an ultra-small MicroPak™ package, which significantly reduces the PCB space required. This makes it ideal for space-constrained applications such as wearable technology, portable electronics, and IoT devices.
• Wide Operating Voltage Range: It operates over a wide voltage range from 1.65V to 5.5V, providing design flexibility and the ability to interface with both high and low voltage logic levels.
• Industrial Temperature Range: The NLX1G97AMX1TCG is designed to operate over an industrial temperature range from -40°C to +85°C, ensuring reliable performance in a variety of harsh environments.

Applications

The NLX1G97AMX1TCG is suitable for a broad spectrum of applications, ranging from consumer electronics to industrial automation systems. Its reconfigurable nature makes it a perfect choice for prototyping and small-scale production where multiple logic functions may be needed without the requirement of multiple different chips. Additionally, its robust performance and small size make it an excellent choice for complex, multi-function logic needs in compact devices.

Conclusion

ON Semiconductor's NLX1G97AMX1TCG configurable multiple-function gate is a testament to the company's dedication to providing innovative and flexible solutions to the electronics industry. With its configurable gate options, advanced CMOS technology, compact design, wide operating voltage range, and robust temperature performance, the NLX1G97AMX1TCG stands out as a smart choice for designers looking to add flexible logic capabilities to their next project.
