ON Semiconductor MC74HC58N Integrated Circuit

The MC74HC58N is a versatile integrated circuit designed and manufactured by ON Semiconductor, a leading supplier in the semiconductor industry. This particular device is a part of the high-speed CMOS family and is known for its robust performance and reliability in a wide range of electronic applications.

The MC74HC58N is a dual 2-input NOR gate with a 2-input NAND gate, which provides the user with a combination of logic functions in a single package. This makes it an ideal choice for implementing complex logic functions with minimal component count, thereby simplifying design and reducing board space.

Constructed with silicon gate CMOS technology, the MC74HC58N offers superior speed performance when compared to the equivalent bipolar Schottky TTL while maintaining CMOS low power dissipation. This balance of speed and power efficiency makes it suitable for use in battery-operated devices, portable electronics, and other power-sensitive applications.

Key features of the MC74HC58N include:

• High noise immunity characteristic of CMOS devices
• Output drive capability of up to 10 LSTTL loads
• Low power consumption with a typical tpd of 8ns
• Broad operating voltage range from 2V to 6V
• Low input current of 1µA (maximum) at 25°C

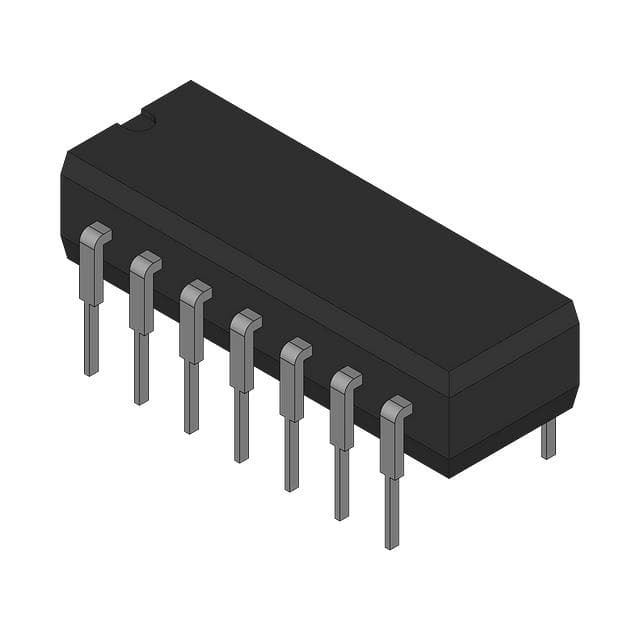

The device is offered in a standard 14-pin DIP (Dual In-line Package), which is suitable for through-hole mounting. This packaging allows for easy integration into various circuit boards and is well-suited for prototyping as well as mass production.

Applications for the MC74HC58N are diverse and include logic synthesis, signal processing, computer logic, and any other system where a combination of NOR and NAND gates are required. Its reliability and performance make it a go-to choice for designers looking for a logic solution that is both efficient and cost-effective.

ON Semiconductor provides comprehensive technical support and detailed datasheets for the MC74HC58N, ensuring that engineers can confidently incorporate this IC into their designs. With its combination of features, the MC74HC58N stands out as a smart choice for a wide array of digital logic applications.
