The CSD19538Q2T is a state-of-the-art N-Channel NexFET™ power MOSFET from Texas Instruments, designed to deliver high performance in a compact footprint. This MOSFET is part of TI's extensive portfolio of semiconductor solutions, engineered to meet the demanding requirements of a wide range of applications.

Key Features

• Low On-Resistance: The CSD19538Q2T boasts an ultra-low on-resistance (R_DS(on)) of just 5.8 mΩ at V_GS = 10V, which minimizes conduction losses and enhances efficiency in power conversion applications.
• High Continuous Drain Current: With a continuous drain current (I_D) of 100 A, this MOSFET can handle high current loads, making it suitable for high-power density applications.
• Thermal Management: The device features a robust thermal design with a maximum junction temperature of 150°C, ensuring reliable operation even under high-temperature conditions.

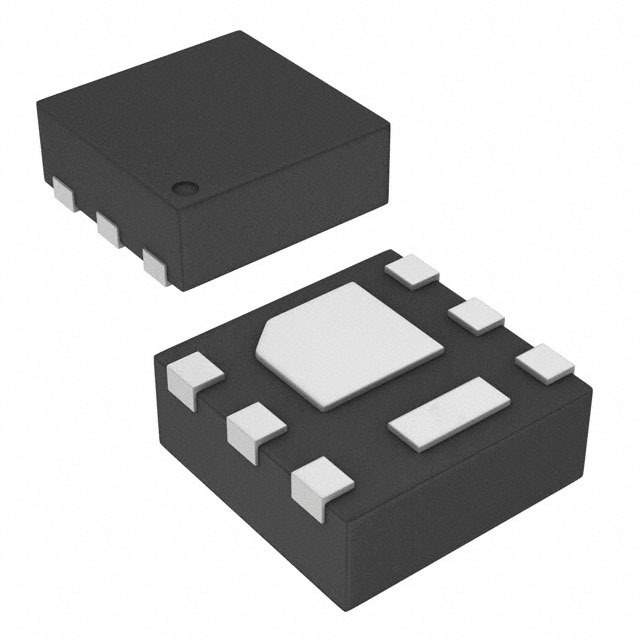

• SON 5x6mm Package: The CSD19538Q2T is housed in a small outline no-lead (SON) package measuring 5x6mm, which allows for a compact PCB layout and is ideal for space-constrained applications.
• Fast Switching: The MOSFET's fast switching characteristics are optimized for efficient operation at high switching frequencies, which is critical for applications such as DC/DC converters, motor drives, and power inverters.

Applications

The CSD19538Q2T is versatile enough to be used in a variety of applications, including:

• Power supplies
• DC/DC converters
• Motor control circuits
• Power inverters
• Load switches
• Hot-swap circuits

Quality and Reliability

As with all Texas Instruments products, the CSD19538Q2T MOSFET is manufactured to the highest quality standards. It is designed to meet stringent reliability requirements, ensuring a long operational life and consistent performance across various conditions.

For engineers and designers looking for a robust, efficient, and space-saving power MOSFET solution, the CSD19538Q2T from Texas Instruments represents an excellent choice that combines cutting-edge technology with practical features tailored to modern electronic designs.
