The CSD95372AQ5M is a highly optimized power block device manufactured by Texas Instruments. This state-of-the-art component is part of TI's NexFET™ product line, designed to deliver high efficiency and power density for a wide range of power supply applications. The CSD95372AQ5M is particularly well-suited for use in multi-phase power supplies, providing a robust and efficient solution for systems requiring a compact power management design.

Key Features

• High Performance: The CSD95372AQ5M boasts an exceptional performance profile, with low on-resistance and low switching losses, making it ideal for high-frequency power conversion.
• Integrated Design: This power block integrates the driver and power MOSFETs into a single package, simplifying design and reducing board space requirements.

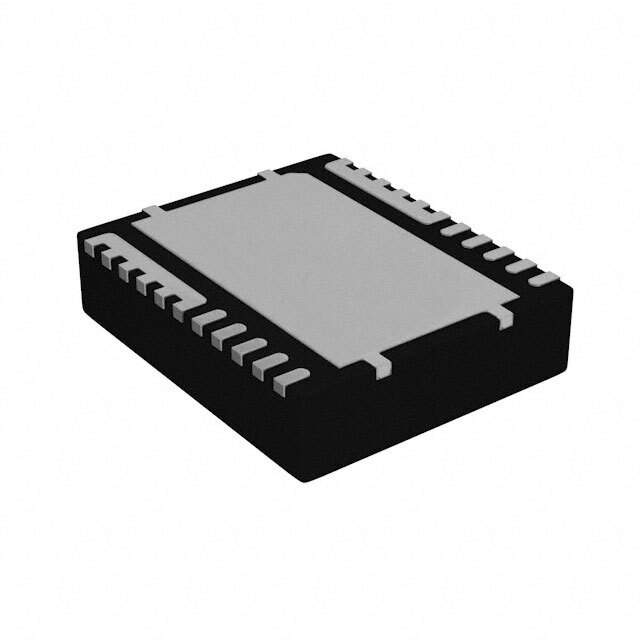

• SON 5x6mm Package: Encased in a small-outline no-lead (SON) package measuring just 5x6mm, the CSD95372AQ5M provides a compact power solution without sacrificing performance.
• Thermal Efficiency: With its advanced packaging technology, the device ensures efficient thermal dissipation, supporting reliable operation even under high power and temperature conditions.
• Versatility: The CSD95372AQ5M is versatile and can be used in various applications, including computing, networking, and telecom power systems.

Applications

The Texas Instruments CSD95372AQ5M NexFET™ Power Block is designed to meet the rigorous demands of modern electronic systems. It is commonly employed in:

• Multi-phase DC/DC converters
• Synchronous buck converters
• Server and telecom power supplies
• Point of Load (POL) modules
• Graphics cards and gaming consoles

Conclusion

With its combination of high efficiency, integration, and thermal performance, the CSD95372AQ5M from Texas Instruments represents a leading-edge solution for designers looking to optimize their power supply architectures. Its compact size and robust design make it an excellent choice for applications requiring the highest standards of power management.
