Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Number of DAC's 4
Resolution 14
Data Interface Serial
Settling Time 8μs
DAC Type Voltage
Operating Temperature Range -40°C ~ 105°C
Supplied Contents Board(s)
Utilized IC / Part DAC8165
Win Source Part Number 772460-DAC8165EVM
Popularity Medium
Supply and Demand Status Limited
Family Name DAC8165
Introduction Date September 03, 2008
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DAC8165EVM CAD Model

Description

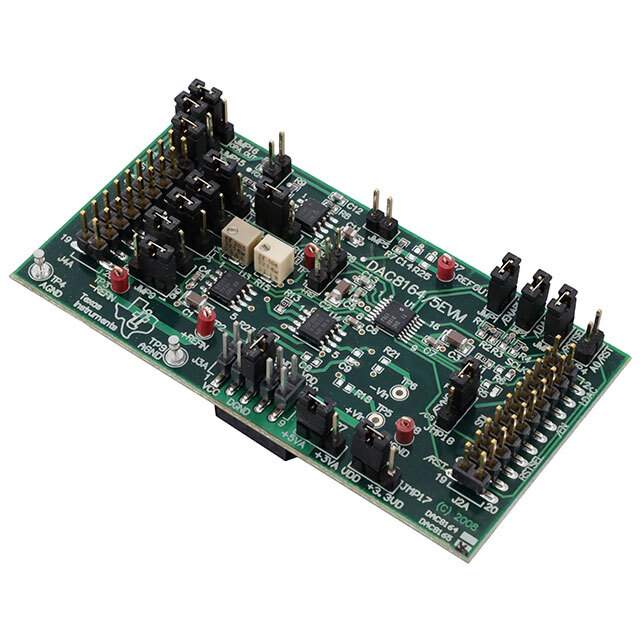

The DAC8165EVM is a comprehensive evaluation module designed by Texas Instruments to facilitate the testing and development of the DAC8165, a high-performance, quad-channel digital-to-analog converter (DAC). This tool provides engineers with a robust platform to explore the features and capabilities of the DAC8165, which is well-suited for a wide range of applications, including industrial automation, process control, and precision instrumentation.

Key Features of the DAC8165EVM

  • Quad-Channel DAC: The DAC8165EVM features a 16-bit, quad-channel DAC, providing four separate output channels that can be evaluated simultaneously.
  • Flexible Voltage Output: Each channel is capable of generating a programmable voltage output, allowing for a wide range of testing scenarios and applications.
  • Integrated Reference: The onboard, low-drift voltage reference ensures high accuracy and stability of the output voltages over time and temperature variations.
  • User-Friendly Interface: The evaluation module includes an easy-to-use graphical user interface (GUI) that facilitates configuration, control, and data analysis through a USB connection to a PC.
  • Software Support: Texas Instruments provides comprehensive software support, including example code and detailed documentation, to assist users in quickly getting started with the EVM.

Benefits of Using the DAC8165EVM

The DAC8165EVM is an essential tool for engineers looking to harness the full potential of the DAC8165 DAC. Its plug-and-play functionality, combined with extensive software support, makes it an ideal choice for rapid prototyping and design validation. With the EVM, users can:

  • Test the performance of the DAC8165 in real-world conditions.
  • Accelerate the design cycle by reducing the time required for hardware and software development.
  • Experiment with different configurations and settings to optimize system performance.
  • Gain insights into the DAC8165's behavior through comprehensive data logging and analysis tools.

Ordering Information

The DAC8165EVM is available for purchase directly from Texas Instruments and authorized distributors. For more information on pricing and availability, please visit the Texas Instruments website or contact your local sales representative.
