Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - Digital to Analog Converters (DACs)
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Number of DAC's 2
Number of Bits 16
Data Interface MICROWIRE™, QSPI™, Serial, SPI™
Settling Time 1 µs
DAC Type Voltage
Supplied Contents Board(s) , Cable(s)
Utilized IC / Part MAX541, MAX542
Base Product Number MAX54
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1348722-MAX54XEVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX54XEVKIT# CAD Model

Description

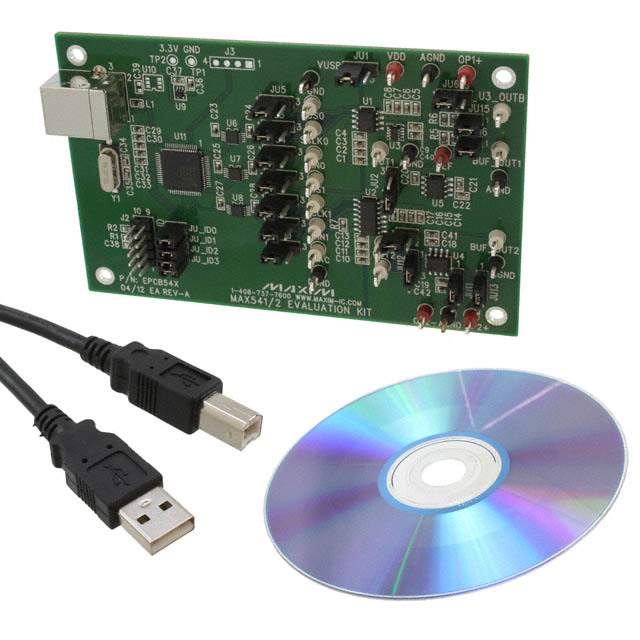

Maxim Integrated MAX54XEVKIT# Evaluation Kit

The Maxim Integrated MAX54XEVKIT# is a comprehensive evaluation kit designed for engineers and developers to facilitate the testing and evaluation of the MAX5401/MAX5403, which are high-performance, low-power, digitally-controlled potentiometers (DCPs). These devices are ideal for a wide range of applications, including adjustable power supplies, LCD screen calibration, and audio signal control.

The evaluation kit includes a fully assembled and tested evaluation board that features the MAX5401/MAX5403 potentiometers. The board is equipped with a variety of test points and connectors that provide easy access to the DCPs' terminals, allowing users to quickly integrate the evaluation board into their prototype or test setups.

Key Features of the MAX54XEVKIT#

  • Plug-and-Play: The evaluation kit is designed for ease of use, with no additional hardware configuration required. Users can start evaluating the performance of the DCPs immediately after unboxing.
  • Software-Controlled: The kit includes a user-friendly software interface that runs on a PC. This interface allows users to control the DCP settings digitally, making it simple to adjust resistance values and monitor the performance of the potentiometers.
  • Flexible Power Options: The evaluation board can be powered either through the USB interface or an external power supply, offering flexibility for different testing environments.
  • High-Resolution Adjustment: The MAX5401/MAX5403 potentiometers offer 256-tap positions, providing fine resolution for precise adjustment of resistance values.
  • Nonvolatile Memory: The onboard nonvolatile memory ensures that the last resistance setting is retained even when the power is removed, making the devices suitable for applications that require a persistent setting.

The MAX54XEVKIT# is an essential tool for engineers who need to evaluate the MAX5401/MAX5403 potentiometers' performance before integrating them into their final designs. With its user-friendly interface and comprehensive feature set, the evaluation kit greatly simplifies the process of testing and validating these advanced components.

Whether you are working on audio equipment, industrial controls, or precision electronics, the MAX54XEVKIT# from Maxim Integrated provides a reliable and efficient platform for assessing the capabilities of digitally-controlled potentiometers.
