Same model may have multiple batches, images only for reference.

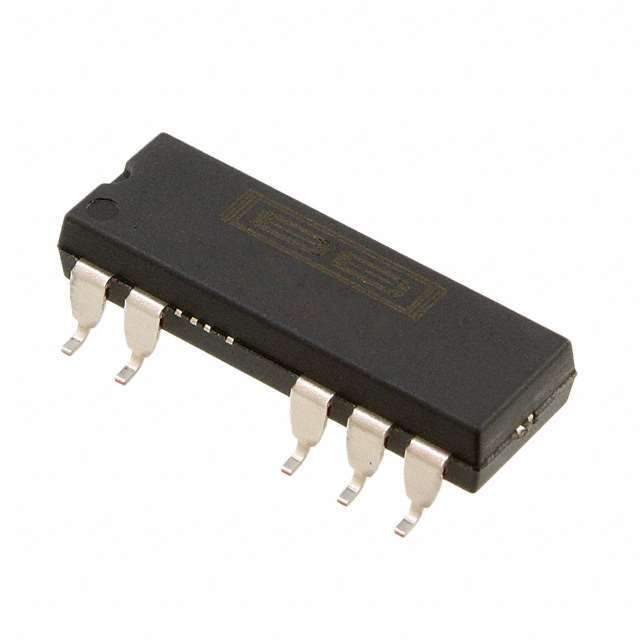

DCP010512DBP-U Real Image
Same model may have multiple batches, images only for reference.

DCP010512DBP-U

Part No DCP010512DBP-U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED +/-12V 41MA 7SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA 42mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads) Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 82%
Power (Watts) - Max 960mW
Catalog DCP01B Series
Win Source Part Number 083207-DCP010512DBP-U
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Automation & Process Control, Sensing & Instrumentation, Test & Measurement, Industrial
Ultra Librarian 3D Model Ultra Librarian DCP010512DBP-U CAD Model

Description

Overview of DCP010512DBP-U

The DCP010512DBP-U offers exceptional DC-DC power conversion performance. This component is perfect for environments requiring efficient energy transfer and minimalist design integration.

Applications

  • Mobile computing platforms
  • Network hardware
  • Embedded applications
  • Renewable energy systems
  • Battery-powered systems

Features and Benefits

  • Low power loss enhances energy efficiency
  • Robust input voltage options
  • Reliable thermal performance for varied conditions
  • Cost-effective solution for power management
  • Enhanced noise suppression

Additional Details

Ideal for integration into new and existing circuit designs, the DCP010512DBP-U is versatile and offers robust solutions, supporting scalability and flexibility within different power networks.
