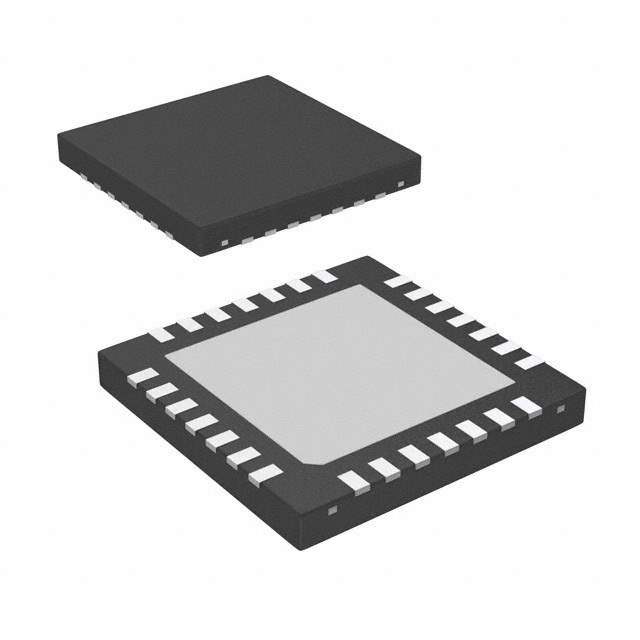

Product Overview: DS90CP02SP/NOPB

The DS90CP02SP/NOPB is a high-speed differential crosspoint switch designed by Texas Instruments, renowned for its exceptional performance in signal routing applications. This device is a member of the high-speed interface family and is specifically engineered to address the needs of data transmission systems that require low power dissipation, minimal jitter, and high data throughput.

Key Features

• High Data Rate: The DS90CP02SP/NOPB supports signaling rates up to 2.5 Gbps, making it suitable for high-speed data transmission applications.
• Low Power Consumption: It operates with a low power consumption of typically 125 mW, which is critical for power-sensitive designs.
• Differential Signaling: This device utilizes LVDS (Low-Voltage Differential Signaling) technology to achieve high-speed data transmission while minimizing electromagnetic interference (EMI).
• Low Jitter: The DS90CP02SP/NOPB is designed to produce very low jitter, ensuring signal integrity and reliable performance in critical applications.

Applications

The DS90CP02SP/NOPB is ideal for a variety of applications that demand high-speed data transfer, such as:

• Telecommunication infrastructure
• Networking equipment
• High-speed data acquisition systems
• Computer servers and workstations
• Video signal routing

Product Specifications

The device is characterized by its robust construction and is available in an 8-pin SOIC package, ensuring easy integration into a wide range of electronic systems. It operates over a broad temperature range, from -40°C to +85°C, which allows for deployment in environments with varying thermal conditions. Additionally, the DS90CP02SP/NOPB is compliant with RoHS standards, reflecting Texas Instruments' commitment to environmentally responsible manufacturing.

Quality and Reliability

As with all Texas Instruments products, the DS90CP02SP/NOPB is manufactured to the highest quality standards, ensuring reliability and performance consistency. Customers can trust in the TI brand for delivering components that meet stringent industry requirements and facilitate the development of advanced electronic systems.
