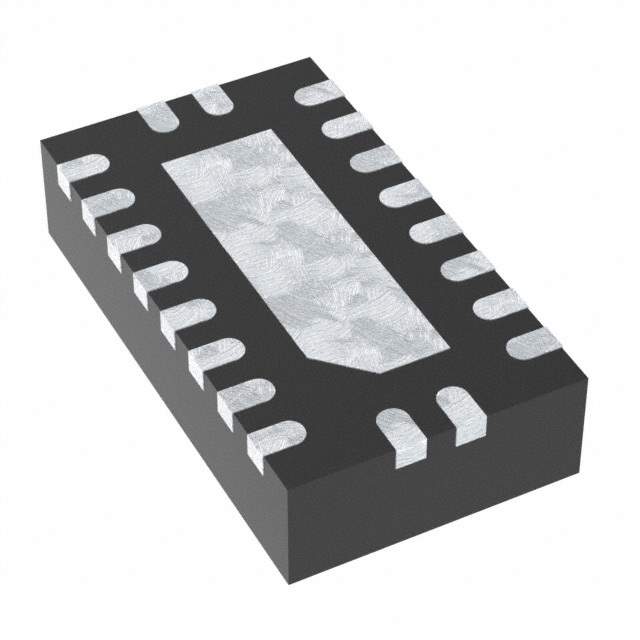

The HD3SS3212IRKST is a high-performance, bidirectional switch designed by Texas Instruments for USB 3.1 Gen 1 applications. This versatile switch is capable of operating in a 2:1 or 1:2 mode, allowing it to switch two differential SuperSpeed USB signal pairs between one of two destinations or sources, respectively. The device is housed in a compact and efficient 42-pin VQFN package, making it an ideal solution for space-constrained applications.

Key Features

• SuperSpeed Data Rate: The HD3SS3212IRKST supports a data rate of 5 Gbps, ensuring compatibility with USB 3.1 Gen 1 specifications for fast data transfer.
• Flexible Switching: It can switch between a 2:1 multiplexer and a 1:2 demultiplexer configuration, providing design flexibility.
• Low Power Consumption: This device offers low power consumption, which is critical for portable and battery-powered applications.
• Enhanced Signal Integrity: The HD3SS3212IRKST is designed to maintain signal integrity, reducing signal degradation for reliable performance over longer cable lengths.
• OCP (Over-Current Protection): The switch includes over-current protection to safeguard the device and connected equipment from potential damage caused by excessive current.

Applications

The HD3SS3212IRKST is suitable for a wide range of applications that require high-speed data transfer and switching capabilities. It is particularly useful in:

• USB peripheral devices
• Docking stations
• Notebooks and Ultrabooks
• Desktop computers
• Server and storage systems

Reliability and Support

As a product from Texas Instruments, the HD3SS3212IRKST is backed by the company's commitment to high-quality manufacturing and reliability. Additionally, Texas Instruments provides comprehensive technical support and resources, including datasheets, application notes, and design tools, to assist with the integration of the HD3SS3212IRKST into various designs.
