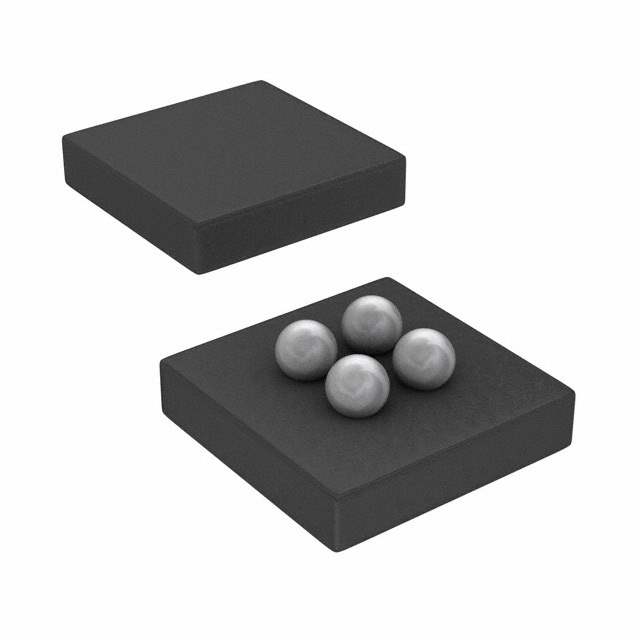

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Current Monitor
Sensing Method High-Side
Accuracy ±0.05%
Voltage - Input 1.8 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 4-DSBGA (1x1)
Win Source Part Number 017291-INA216A2YFFR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian INA216A2YFFR CAD Model

Description

The INA216A2YFFR is a high-quality, top-of-the-line product from Texas Instruments, a leading semiconductor company that designs and manufactures semiconductors and various integrated circuits.

  • Accuracy: ±1% gain error (maximum) over a temperature range of -40°C to 125°C
  • Input Common-Mode Range: -16V to +80V
  • Features: Detects both the direction and magnitude of the current
  • Resistor: Integrated 2mΩ current-sense resistor
  • Features: Programmable conversion times and averaging functions
  • Features: Integrated fault detection features
  • Package: Compact, 3mm x 3mm QFN package
  • Supply Range: 2.7V to 5.5V
