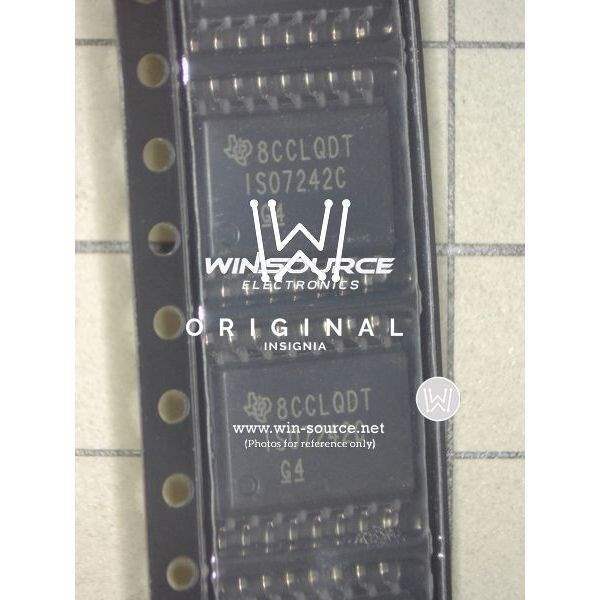

ISO7242CDWRG4 Real Image ISO7242CDWRG4 real image
Same model may have multiple batches, images only for reference.
ISO7242CDWRG4 Real Image ISO7242CDWRG4 real image
ISO7242CDWRG4 Real Image ISO7242CDWRG4 real image
Same model may have multiple batches, images only for reference.

ISO7242CDWRG4

Part No ISO7242CDWRG4
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 16SOIC
Datasheet
ISO7242CDWRG4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 2/2
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 25Mbps
Propagation Delay tpLH / tpHL (Max) 42ns, 42ns
Pulse Width Distortion (Max) 2.5ns
Rise and Fall Time 2ns, 2ns
Supply Voltage - Operating 3.15 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 16-SOIC
Win Source Part Number 070214-ISO7242CDWRG4
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Computers & Computer Peripherals, Automation & Process Control, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian ISO7242CDWRG4 CAD Model

Description

The ISO7242CDWRG4 is a high-performance, quad-channel digital isolator product from Texas Instruments, a leading semiconductor company renowned for its innovative IC design and manufacturing.

  • Channels: Four independent isolation channels, two forward and two reverse
  • Isolation Technology: TI's Capacitive Isolation technology
  • Data Rate: Up to 150 Mbps
  • Isolation Barrier: Up to 2.5kVrms
  • Supply Voltage Range: 3.0 to 5.5V
  • Operating Temperature Range: -40 to 125 degrees Celsius
  • Fail-Safe Output: Yes
  • Power Consumption: Low
  • Package: Compact 16-SOIC package
