LM1117MPX-ADJ

Part No LM1117MPX-ADJ
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.8A SOT223
Datasheet
LM1117MPX-ADJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 13.8V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 13.8 V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 091959-LM1117MPX-ADJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Signal Processing, Consumer Electronics, Portable Devices

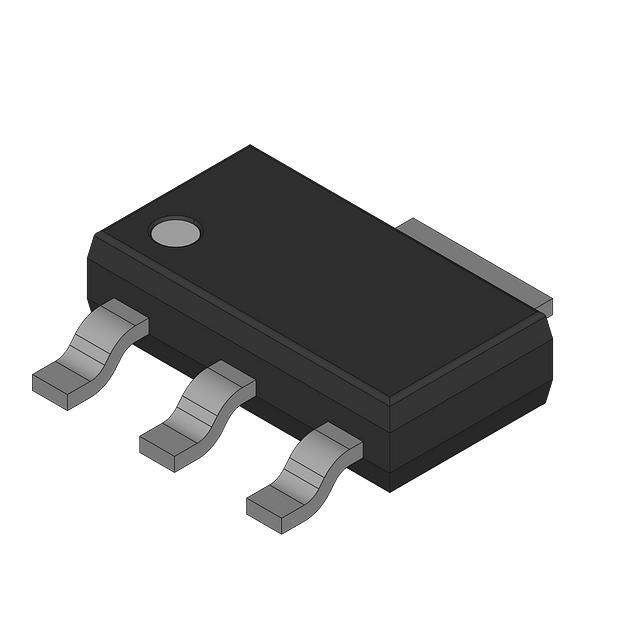

Ultra Librarian 3D Model Ultra Librarian LM1117MPX-ADJ CAD Model

Description

The LM1117MPX-ADJ is a high-quality voltage regulator from Texas Instruments, a leading global semiconductor company.

  • Adjustable Output: 1.25V to 13.8V
  • Output Current: Up to 800mA
  • Dropout Voltage: 1.2V @ 800mA over temperature
  • Output Voltage Accuracy: ±2%
  • Safety Features: Built-in thermal shutdown and current limit functions
  • Package: Compact SOT-223
  • Compliance: RoHS compliant
  • Stability: Stable with low-ESR output capacitors
