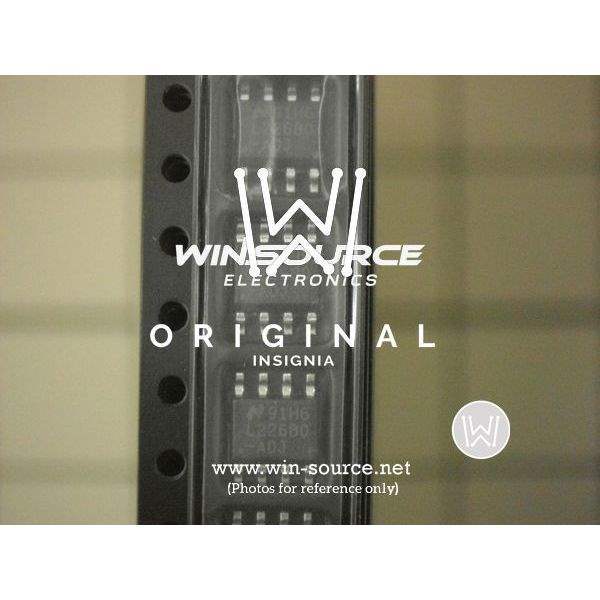

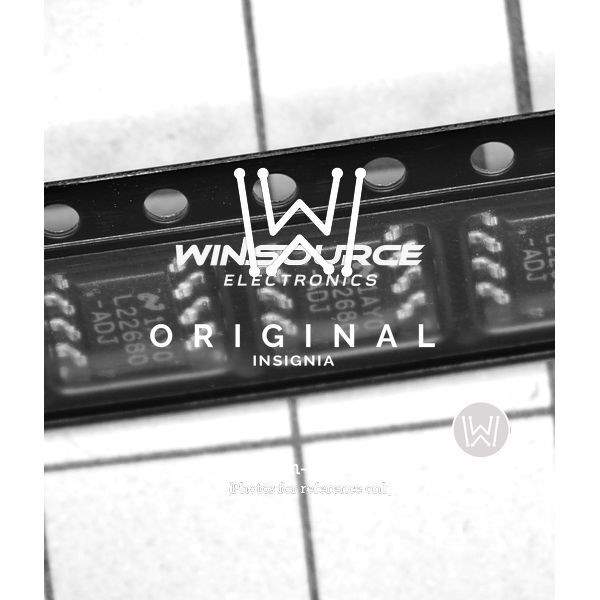

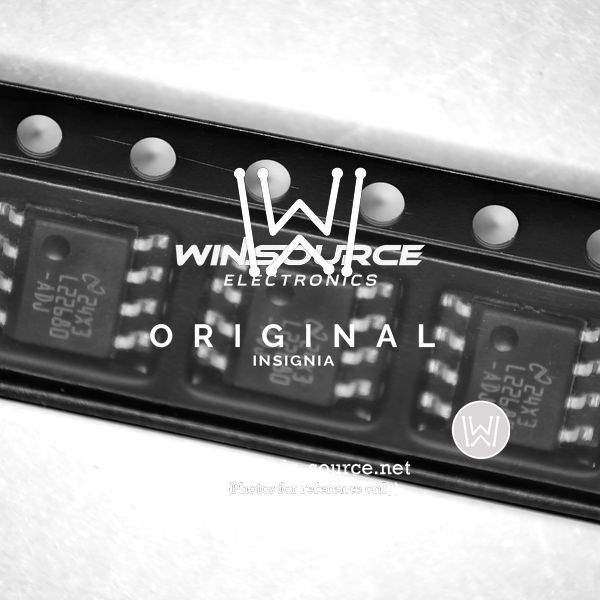

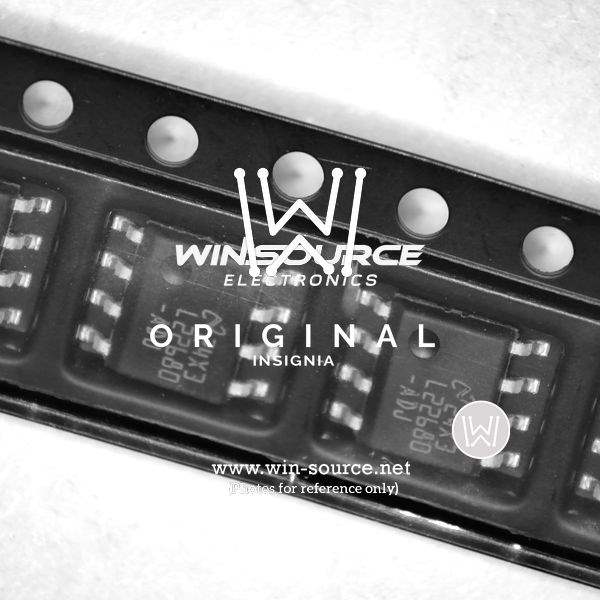

LM22680MRX-ADJ Texas Instruments LM22680MRX-ADJ real image1011 LM22680MRX-ADJ Real Image1 LM22680MRX-ADJ Real Image2 LM22680MRX-ADJ real image
Same model may have multiple batches, images only for reference.
LM22680MRX-ADJ Texas Instruments LM22680MRX-ADJ real image1011 LM22680MRX-ADJ Real Image1 LM22680MRX-ADJ Real Image2 LM22680MRX-ADJ real image
LM22680MRX-ADJ Texas Instruments LM22680MRX-ADJ real image1011 LM22680MRX-ADJ Real Image1 LM22680MRX-ADJ Real Image2 LM22680MRX-ADJ real image
Same model may have multiple batches, images only for reference.

LM22680MRX-ADJ

Part No LM22680MRX-ADJ
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description Conv DC-DC 4.5V to 42V Synchronous Step Down Single-Out 1.285V to 37V 2A 8-Pin HSOP EP T/R / IC REG BUCK ADJ 2A 8SOPWRPAD
Datasheet
LM22680MRX-ADJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 42V
Nominal Output Voltage (Min/Fixed) 1.285V
Maximum Output Voltage 37V
Output Current 2A
Frequency - Switching 500kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SO PowerPad
Win Source Part Number 089560-LM22680MRX-ADJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LM22680
Introduction Date October 17, 2008
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LM22680MRX-ADJ CAD Model

Description

The LM22680MRX-ADJ is a highly sophisticated piece of technology from Texas Instruments.

  • Product Type: Simple Switcher® 42V, 2A Step-Down Voltage Regulator
  • Output Voltage: Adjustable
  • Input Voltage: Up to 42V
  • Output Current: 2A
  • Switching Transistor: Integrated
  • Soft-Start Function: Included
  • Protection: Built-in thermal shutdown and current limit protection
  • Efficiency: High
  • Rectification: Synchronous rectification
  • Standby Current: Low
  • Package: Compact, surface-mount
