The LM2596S-12 from Texas Instruments is a highly efficient, step-down voltage regulator that offers all the features necessary for a robust power design. This regulator is part of the LM2596 Simple Switcher® series and is designed to provide a stable 12V output from a higher voltage input, making it an ideal solution for a wide range of applications including consumer electronics, industrial hardware, and embedded systems.

Key Features

• Output Voltage: The LM2596S-12 provides a fixed output voltage of 12V, which is suitable for devices that require a stable supply of power.
• Current Capability: It can deliver up to 3A of continuous output current to the load with excellent line and load regulation.
• Efficiency: The device operates at a switching frequency of 150 kHz, which allows for a high efficiency of up to 77%, reducing heat generation and power loss.
• Thermal Shutdown: Integrated thermal shutdown and current limit features protect the device and the load from damage due to overheating and overcurrent conditions.
• Voltage Range: The input voltage range of 4.5V to 40V provides flexibility for use in various power supply configurations.
• Adjustable Version: An adjustable version is available for applications requiring a different output voltage, which can be set with external resistors.

Applications

The LM2596S-12's robust design makes it suitable for a variety of applications, such as:

• Simple high-efficiency step-down (buck) regulators
• Efficient pre-regulators for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)

Package and Quality

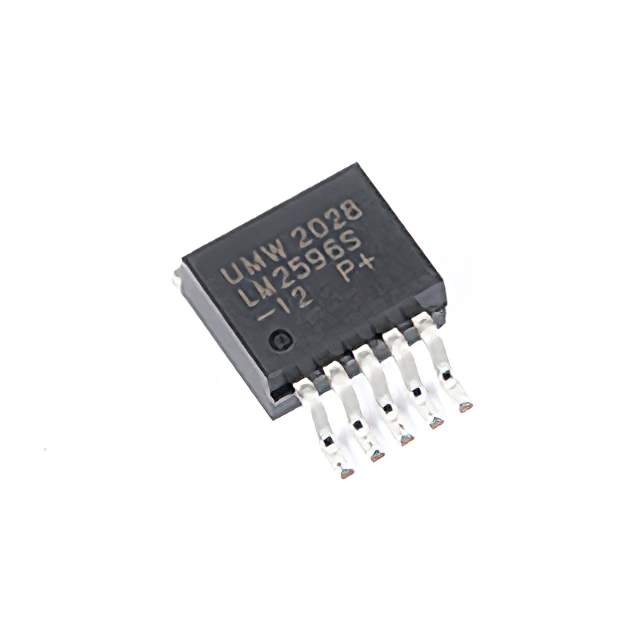

The LM2596S-12 comes in a TO-263 package, which is designed for surface mount technology and offers good thermal performance. Texas Instruments is known for its commitment to quality, and this product is no exception, ensuring reliability and performance consistency across various conditions.

For detailed specifications, application notes, and additional resources, please refer to the official Texas Instruments datasheet for the LM2596S-12 voltage regulator.
